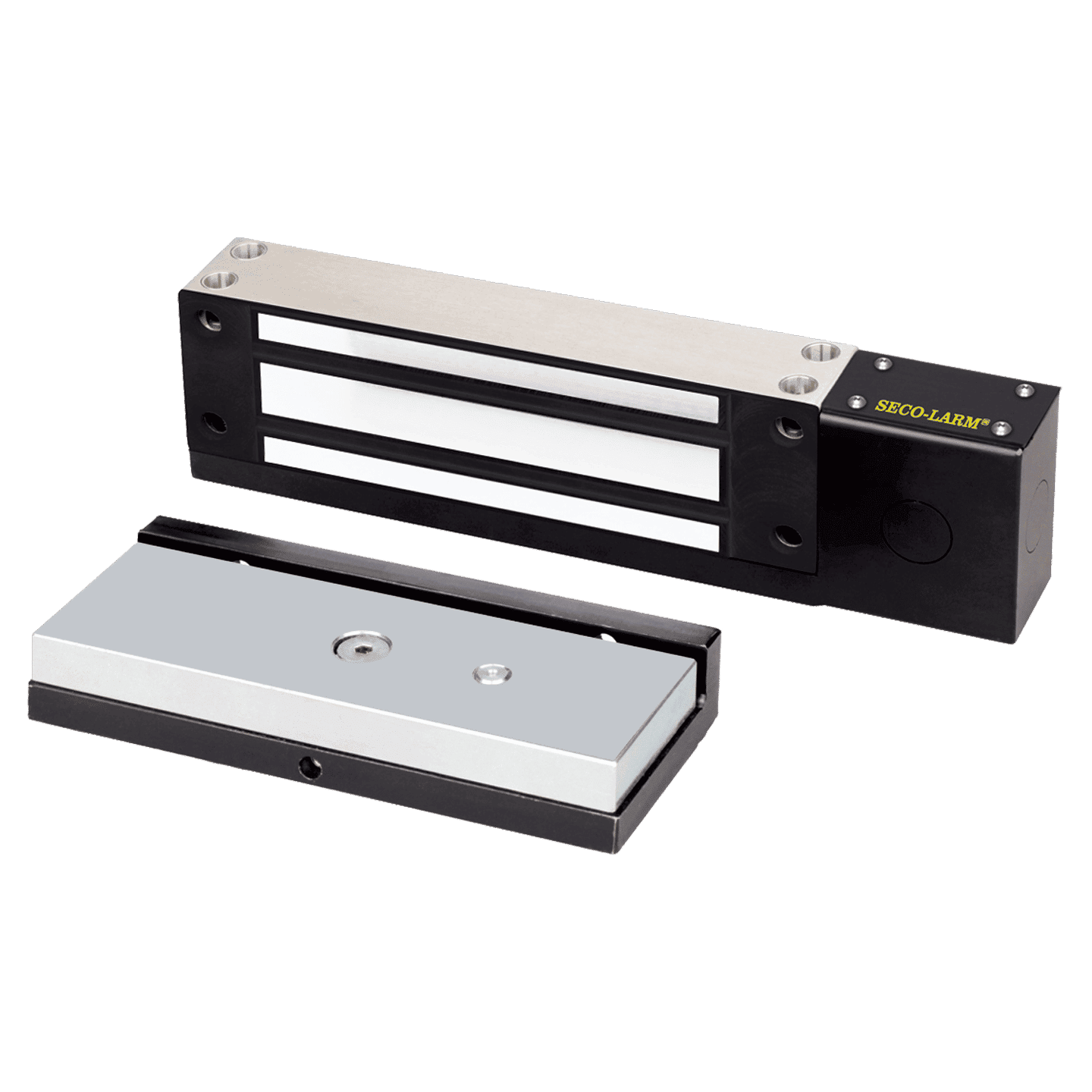

SECO-LARM - E-946FC-1K2SQ - 1,200-lb Electromagnetic Gate Lock, Side (Surface) Mount, Weldable
Part number:
E-946FC-1K2SQ
Price:
The SECO-LARM Electromagnetic Gate Lock with Weldable Bracket combines a strong and durable gate lock with a weldable bracket for ease of installation and greater security. With variants of both 1,200-lb (544kg) and 600-lb (272kg) holding force, it is suitable for almost any gate installation and can be installed horizontally and vertically.
Features:
- 12/24 VDC
- For use with nearly all types of outdoor sliding and swinging electric gates
- Low current draw of 500mA@12VDC, 250mA@24VDC
- Can be welded or bolted directly to gate and mounted horizontally or vertically
- Includes a magnetic lock with brackets for armature and magnet, mounting hardware included
- Zinc-plated brackets for corrosion resistance
- Maintenance-free, factory-sealed design, IP67 Waterproof
- Water- and vandal-resistant stainless-steel with black finish to match most gates
- Fail-safe operation (releases if power is removed)
- Four knockouts on junction box
| Operating Voltage | 12/24VDC |
| Holding Force | 1,200-lb (544kg) |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| IP Rating | IP67 Waterproof |
| Operating Temperature | 14º~131º F (-10º~55º C) |
| Certification | cUL, UL, CE, RoHS (magnetic lock only) |
| Weight | Maglock & Armature Weight (Approx.): 11-lb (5kg) |
| Brackets: 5-lb (2.3kg) | |
| Total: 16.1-lb (7.3kg) |
