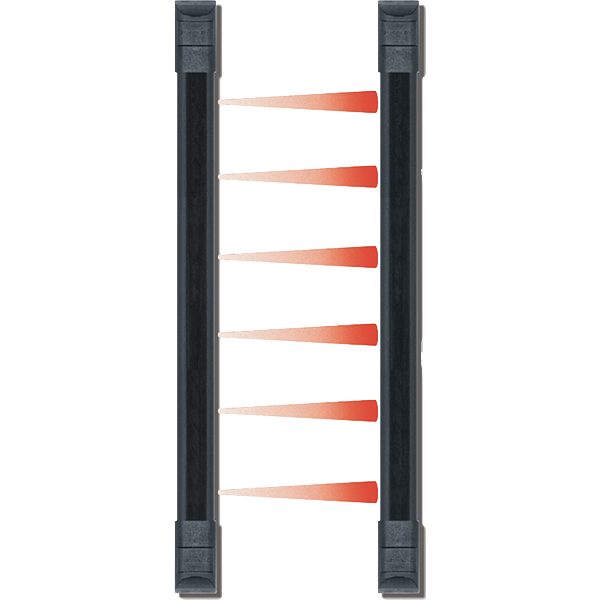

Curtain Sensor. Length: 44½", with six photoelectric beams. Range: Up to 25ft outdoor and 50ft indoor. NO/NC relay output, anti-tamper circuit, and LED alignment indicator. Black enclosure.
These infrared photobeam curtain/barrier sensors are perfect for installation in windows, doorways, skylights, fence tops, any place where space is limited. Suitable for indoor and outdoor perimeter security, the trigger is programmable for simultaneous breaking of any single or 2 adjacent beams. The design features rugged aluminum construction, and an anti-tamper circuit for triggering an alarm if power is cut or the end cap is removed. No synchronizing wires are required and the LED alignment indicator makes installation easy. Mounting hardware is included.
Features:
- Rugged aluminum construction
- LED alignment indicator
- No synchronizing wires required
- NO/NC relay output
- Weather-resistant (IP54) construction
- Slimline design (7/8″ x 1-5/16″ cross section)
- Trigger by simultaneously breaking 2 adjacent beams or any single beam (programmable)
- For windows, doorways, etc., where space is limited
- Mounting hardware included
- 3 Programmable frequencies eliminate interference when installing multiple sensors in close proximity
| Type | IR Curtain Sensors for Indoor/Outdoor Access Control |
| Current Draw | Standby- 94mA, Active- 79mA |
| Number of Beams | 6 |
| Sensing Range | 25′ (8m) outdoor, 50′ (16m) indoor |
| Operating Voltage | 12~24VDC |
| Reaction time | 0.5~48.5 ms |
| Detection System | Simultaneous break of 2 adjacent beams or any single beam (programmable) |
| LEDs | (On): powered, aligned properly, (Flash): when beam is broken, (Off): no power |
| Case material | IP54 Weather-resistant / Aluminum alloy |
| Output | NO/NC relay output, 1A @ 12~24VDC |
| Operating Temperature | -49º~131º F (-45º~55º C) |
| Dimensions | 44-1/2″ x 1-5/16″ x 7/8″ (1130 x 33 x 22 mm) [Length x Width x Height] |
| Hardware | Mounting Bracket Included |
