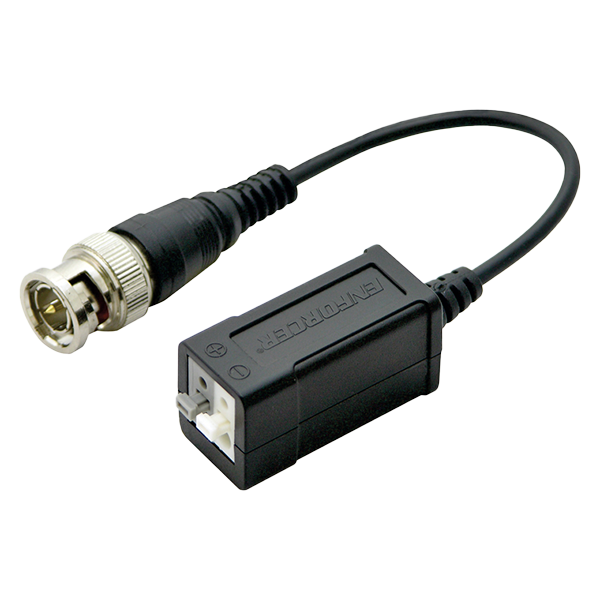

SECO-LARM - EB-P101-20HQ - Passive 4-in-1 HD Video Balun with 6” Pigtail
Part number:
EB-P101-20HQ
Price:
Balun with 6” Pigtail, Range over 1080p: HD-TVI – 623ft (190m) HD-CVI – 720ft (220m) HD-AHD – 720ft (220m), 3-in-1 HD-AHD/TVI/CVI, real –time transmission over UTP Cat5e/6, PAL/NTSC/SECAM compatible, anti-static and wave filter, lightening protection – Grade III, 60dB crosstalk & noise immunity, exceptional interference rejection, operating temperature: -4~158F (-20~70C). Sold in multiples of 10 pairs (price is for 1 pair).
Features:
- 4-in-1 TVI / CVI / AHD (up to 4K) and Analog video
- Transmits up to 1,312ft (400m) depending on format, resolution, and cable used
- PAL / NTSC / SECAM compatible
- Built-in TVS surge protection
- Anti-static and wave filters
- Lightning protection – Grade III
- 60dB Crosstalk and noise immunity
- Exceptional interference rejection
- Real-time transmission over low-cost Cat5e/6 cable instead of costly coaxial cable
- Quick-connect terminals for easy installation
- Small size allows mounting of multiple baluns behind a DVR
- Sold as Pair
| Max. Range | TVI- 4MP: 590ft (180m) 4K: 426ft (130m), CVI- 4MP/4K: 656ft (200m), AHD- 4MP: 656ft (200m) 4K: 492ft (150m), Analog – 4MP/4K: 1,312ft (400m) |
| Common Mode Rejection | 60dB, 15kHz~42MHz |
| Power | No external power required |
| Wire Type | UTP (Unshielded Twisted Pair) 24~16 AWG |
| Wire Category | Cat2~Cat6 |
| Impedance | Coax, male BNC 75Ω@1MHz, Screwless terminal-100Ω@1MHz ±20Ω |
| Attenuation | 1.5dB max. |
| Frequency response | DC~42MHz |
| Surge Protection | Renewable solid state surge protection |
| UTP Connection | Nickel plated |
| Video Format | NTSC, PAL, SECAM |
| Video Input | 2KV (common mode), 10/700μs IEC6100-4-5/1955 (GB/T 1726, 5-1999) |
| Video Output | 2KV (differential mode), 10/700μs IEC6100-4-5/1955 (GB/T 1726, 5-1999) |
| DC Loop resistance | 52Ω/1000’ (18Ω/100m) |
| Differential Capacitance | 19pF/ft max. (62pF/m max.) |
| Operating Humidity | 0~95 % (Non-condensing) |
| Operating Temperature | -4°~158° F (-20°~70° C) |
| Storage Temperature | -40°~305° F (-40°~150° C) |
| Cable Length | 5-15/16″ (150mm) |
| Case | ABS Plastic |
| Weight | 1.4-oz (40g) |
| Dimensions | 1-1/2″x3/4″x13/16″ (38x19x20 mm) [Housing only] |
