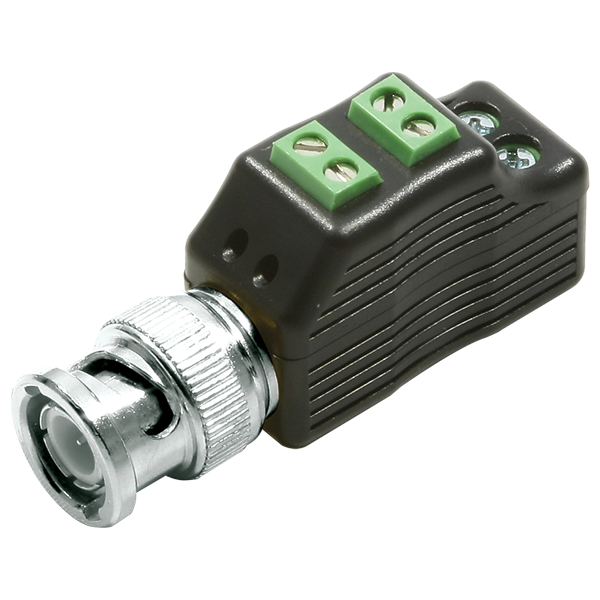

SECO-LARM - EB-P501-02HQ - 4-in-1 HD Video Balun with Pass-Through
Part number:
EB-P501-02HQ
Price:

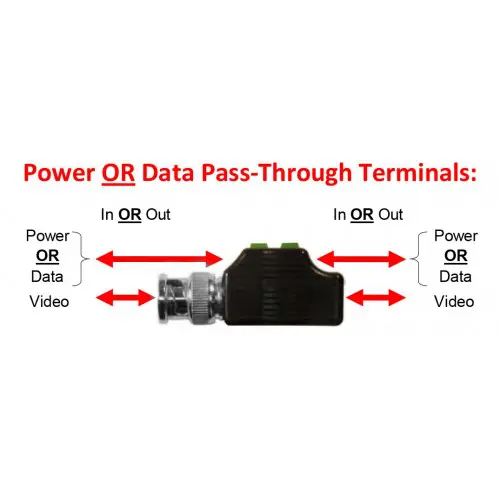

The fast, easy, and low-cost way to connect a CCTV camera to a monitor, multiplexer, or video recorder. The EB-P501-02HQ video balun allows the video signal of a single CCTV camera to be transmitted long distances over low-cost CAT2 to CAT6 unshielded twisted pair (UTP) cable. Great for both full-motion color and full-motion monochrome cameras, this balun increases the flexibility of where such cameras can be mounted. This CCTV balun also works over existing UTP cabling, making it perfect for use in nearly any building or across an entire campus. The EB-P501-02HQ’s patented design features built-in terminals for power OR data pass-through.
Features:
- 4-in-1 TVI / CVI / AHD / Analog video up to 4K/8MP
- Transmits up to 1,312ft (400m) depending on format, resolution, and cable used
- PAL / NTSC / SECAM compatible
- Passive operation – No power required
- Lifetime limited warranty
- Built-in ESD, EFT, and transient protection
- High immunity from interference
- Uses low-cost Cat5e/6 cable instead of costly coaxial cable
- Screw terminals for easy installation
- Small size allows mounting of multiple baluns behind a DVR
| Range | TVI- 1080p: 492ft (150m), 4K/8MP: 656ft (200m) CVI- 1080p: 820ft (250m), 4K/8MP: 820ft (250m) AHD- 1080p: 656ft (200m), 4K/8MP: 820ft (250m) Analog- 1,312ft (400m) |
| Video Format | PAL, NTSC, SECAM |
| Maximum Input | 1Vp-p |
| Insertion loss | 10dB@0.3~100Mhz max. Return loss |
| Return loss | 3dB@0.3~51Mhz max. |
| Frequency response | 300kHz~100MHz |
| Common mode rejection | 65dB min. |
| Wire type | UTP (Unshielded Twisted Pair) 24~16 AWG |
| Wire category | Cat2 min. |
| Attenuation | 1.5dB max. |
| Impedance | Coax, make BNC- 75Ω@1MHz Terminal block- 100Ω@1MHz |
| ESD Protection | 30kV (Air), 15kV (Contact), IEC 61000-4-2 compliant |
| EFT Protection | 40A (5/50ns), IEC 61000-4-4 compliant |
| Lighting protection | 2A (8/20μs), IEC 61000-4-5 compliant |
| DC loop resistance | 52Ω/1000’ (18Ω/100m) |
| Differential capacitance | 19pF/ft max. (62pF/m max.) |
| Power | No power required |
| Maximum Amperage | 2A@12VDC, 2A@24VDC |
| Maximum pass-through voltage | 24 VAC/VDC |
| Operating temperature | 32°~131° F (0°~55° C) |
| Storage temperature | -4°~185° F (-20°~85° C) |
| Humidity range | 0~95% (Non-condensing) |
| Case | ABS Plastic |
| Weight | 0.6-oz. (18g) |

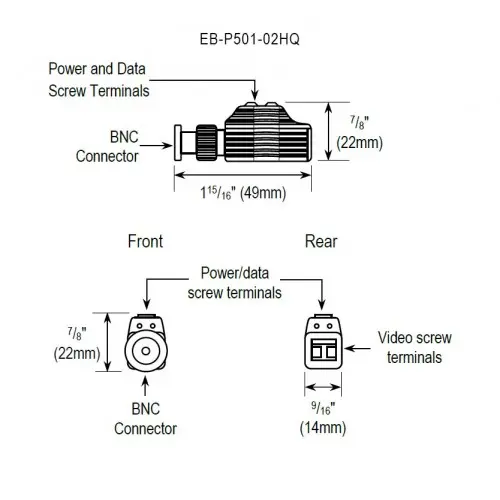

| Dimensions | 1-15/16″x9/16″x7/8″ (49x14x22 mm) |
