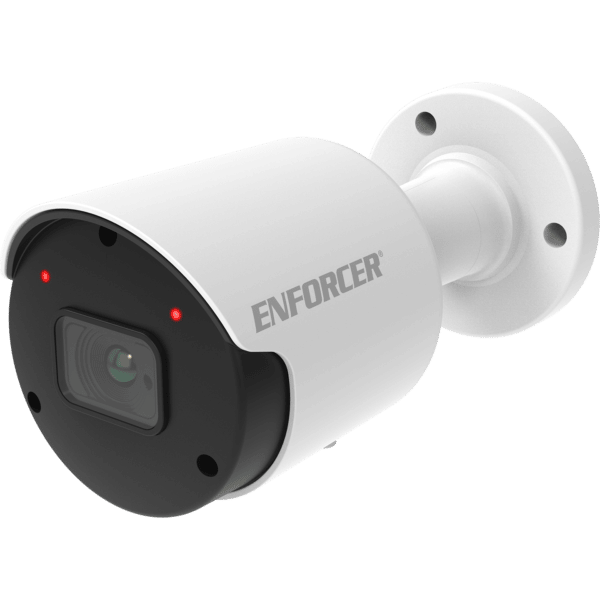

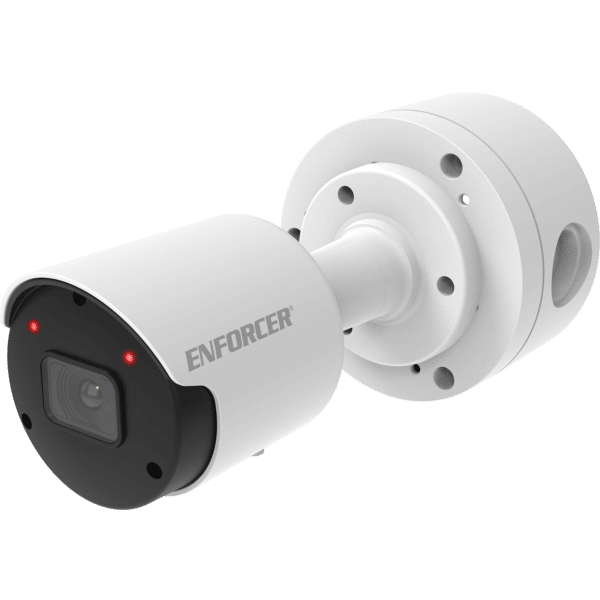

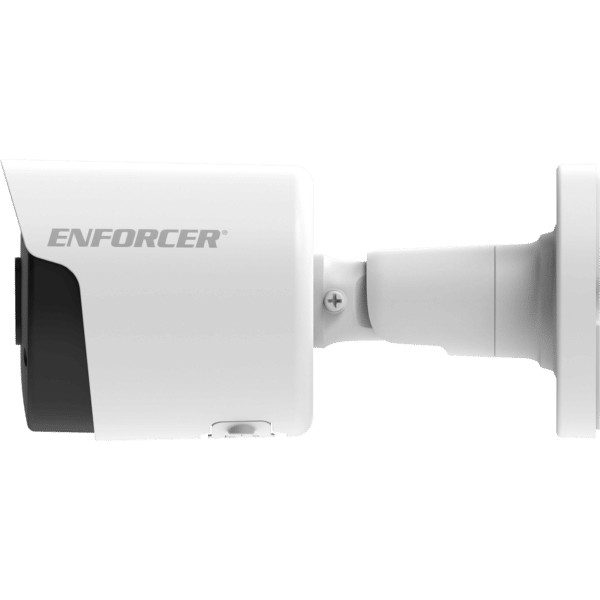

SECO-LARM - EV-N1506-2W4Q - IP Fixed Bullet Camera, 5MP, 2.8mm, H.264/MJPEG, Dual Stream. ONVIF Profile S, 12VDC, PoE
Part number:
EV-N1506-2W4Q
Price:
IP Fixed Bullet Camera, 5MP, 2.8mm, H.264/MJPEG, Dual Stream. ONVIF Profile S, 12VDC, PoE
Features:
- 1/2.7″ 5MP SMARTSENS CMOS
- H.265/H.264, Tri-stream IP Camera
- 12VDC, PoE 802.3af
- True Day & Night function with ICR mechanism
- IR Range up to 98′ (30m)
- Max. 20FPS/5MP, 1440p (2592×1944)
- Weather-resistant (IP66)
- D-WDR
- 3DNR
- ONVIF Profile S, Profile G
- Junction box is not included with the product
| Type | Fixed Bullet Camera |
| Sensor | 1/2.7″ 5MP SMARTSENS CMOS |
| Video encoding | H.265/H.264 |
| Megapixels | 5MP |
| Resolution | 1440p, 2592×1944 |
| 3DNR | Yes |
| Scanning system | Progressive 1080p |
| # of IR LEDs | 2pcs (850nm) |
| Lens | 2.8mm |
| Viewing angle | 131° |
| Minimum illumination | 0.05 Lux |
| F Stop | 1.2 |
| Gamma correction | Auto |
| Gain control | Auto |
| White balance | Auto |
| Operating voltage | 12VDC, PoE 802.3af |
| Current Draw – IR Off | 80mA max. |
| IP Rating | Weatherproof IP66 |
| Operating temperature | -22°~131° F (-30°~55° C) |
| Dimensions | ø2-13/16″x5-15/16″ (ø71×151 mm) |
| Weight | 13.4-oz (370g) |
