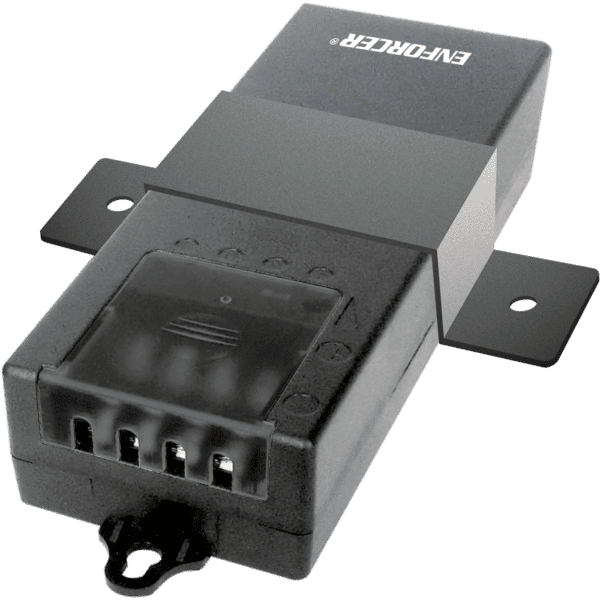

SECO-LARM - PA-U0405-NULQ - 4-Channel Brick Power Supply. 4 Outputs. 5 Amps. Universal 100-240 VAC. Adjustable output voltage 12-13.8 VDC. Built-in over-current protection. Mounting bracket included.
Part number:
PA-U0405-NULQ
Price:
4-Channel Brick Power Supply. 4 Outputs. 5 Amps. Universal 100-240 VAC. Adjustable output voltage 12-13.8 VDC. Built-in over-current protection. Mounting bracket included.
The PA-U0405-NULQ is a 4-channel 5-Amp power supply. While normally used in CCTV installations, it is suitable for a wide variety of both CCTV and access control applications. It features adjustable output voltage and built-in 6.8-Amp overcurrent protection.
Features:
- 4-Channel, 5-Amp power distribution
- Can be mounted with the bracket for easy access and reduced power cord clutter
- Universal input voltage: 100~240 VAC
- Adjustable output voltage: 12~13.8 VDC
- Built-in 6.8-Amp overcurrent protection
- High voltage and overcurrent protection
- LED Power indicator
| Input Voltage | 100~240VAC |
| Max. Output power | 60W |
| Output Voltage | 12~13.8 VDC, adjustable |
| Number of Outputs | 4 |
| Total Supply Current | 5 Amp |
| Input fuse | 3.15A@250VAC |
| Overcurrent Protection | 12VDC / 6.8A |
| Dimensions | 5-7/8″ x 2-3/16″ x 1-5/16″ (150 x 55 x 33 mm) |
| Weight | 13.4-oz (380g) |
| Operating Temperature | 14º~113º F (-10º~45º C) |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Manual
0.6mb
