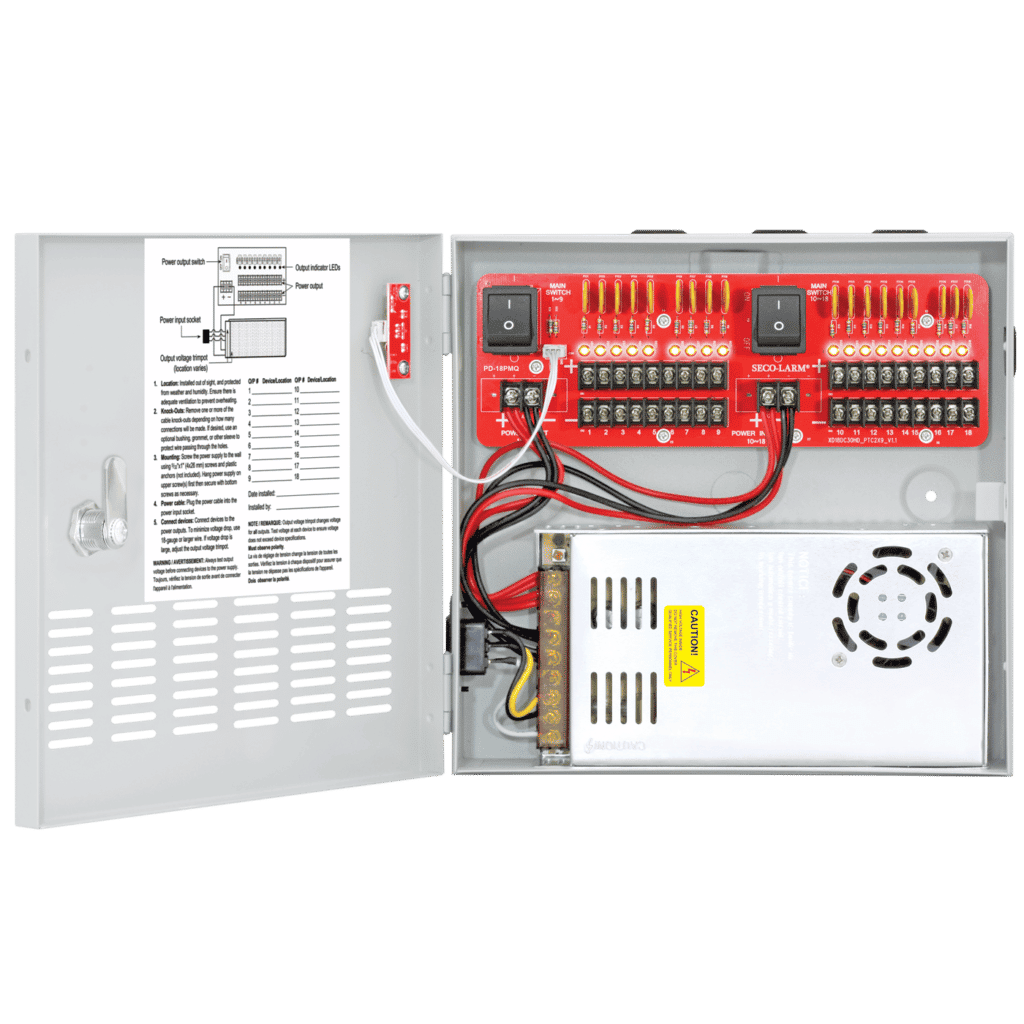

SECO-LARM - PC-U1830-PULQ - 12VDC Switching CCTV Power Supply, 18 Outputs, 30A total
Part number:
PC-U1830-PULQ
Price:

The ENFORCER 12VDC Switching CCTV Power Supply is an efficient solution for powering CCTV installations. Each unit distributes power to multiple CCTV devices and provides short circuit and overheat protection.



Features:

  • 100~220 VAC Input*
  • Adjustable output to reduce voltage drop
  • Each output individually protected by a PTC fuse
  • PTC fuses rated 1.85A@11.0~13.8 VDC
  • Power output ON/OFF switch
  • Individual output status LEDs
  • Convenient AC input and DC output status LEDs on cover
  • Heavy-duty steel case with cover
  • Built-in short circuit and overheat protection
  • 3.3ft (1m) Power cord included
Outputs18
Total supply current30A
Max. current per output1.85A
Output fusePTC
Output voltage11.0~13.8 VDC (adjustable by trimpot, ±10% (47~63 Hz)
Input voltage110/220 VAC (50/60 Hz)
LED indicatorsCover -Green: AC Input, Red: DC Output PDM -Red: DC Output
Operating humidity90% (non-condensing)
Operating temperature32°~104° F (0°~40° C)
Dimensions10″x10-5/16″x3-1/8″ (254x262x79 mm)
Weight6-lb 4-oz (2.84kg)
