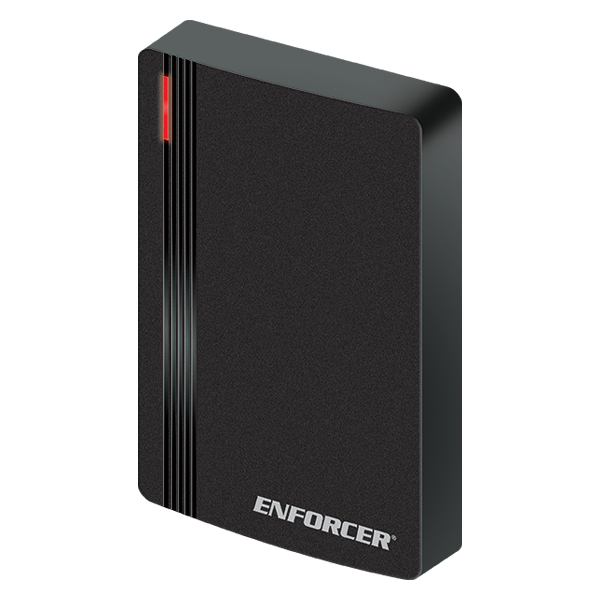

SECO-LARM - PR-2125-PQ - Single-Gang Wiegand Proximity Reader
Part number:
PR-2125-PQ
Price:
Single-Gang Wiegand Proximity Reader – EM 26 bits, EM 125 kHz, Outdoor rated – IP66, Extreme cold tolerance to -40° F (-40° C), 9~24 VDC Operation, Sturdy black ABS plastic housing
Features:
- 9~24 VDC Operation
- Low current draw – 50mA max.
- Built-in buzzer for external alarm input
- Multicolor status LED
- EM 125 kHz
- 10 User proximity cards included
- Weatherproof – IP66
- Extreme cold tolerance to -40° F (-40° C)
- Wiegand output reader – EM 26 bits
- Sturdy black ABS plastic housing
| Operating Voltage | 9~24 VDC |
| Current Draw – Standby | 20mA@12VDC |
| Current Draw – Active | 50mA@12VDC (max.) |
| Outputs – Wiegand | EM – 26 bits |
| Card type | 125kHz EM |
| Card read range | 0~2″ (0~5 cm) |
| IP Rating | Weatherproof IP66 |
| Enclosure material | Black ABS plastic |
| Operating temperature | -40°~140° F (-40°~60° C) |
| Operating humidity | 10~98% non-condensing |
| Dimensions | 2-15/16″x4-3/4″x13/16″ (75x120x20 mm) |
| Weight | 5.5-oz (155g) |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
Manual
0.5mb
