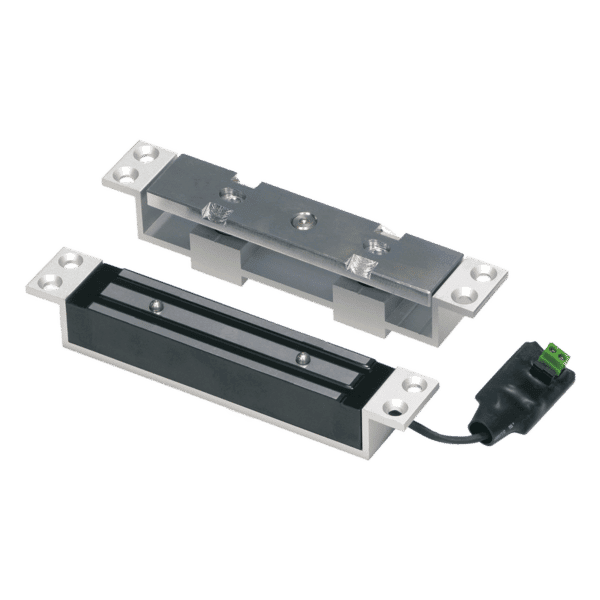

Concealed security for remote access and exit control of aluminum and steel doors or gates. Works with sliding, single-action, and double-action (swing through) doors and gates. Plated steel plugs and magnetic bond holds doors securely in place with approximately 1,500 pounds (680 kg) of shear holding force. Surface-Mount Brackets and U-Brackets also available for surface-mount and glass-door-mount applications.

Features:

• Spring-loaded locking bolts and magnetic bond holds doors securely in place with approximately 1,500 pounds (680kg) of shear holding force
• No residual magnetism
• MOV Surge protection
• Concealed security for remote access and exit control of aluminum and steel doors or gates
• Smaller size for use with most metal door jambs
• Zinc-plated magnet and armature, anodized aluminum housing
• Works with sliding, single-action, and double-action (swing-through) doors and gates
• Use with an optional digital keypad for keyless high security
• Easily connects to SECO-LARM’s Electronic Keypads
• Fail-safe operation (unlocks if power is lost)
• Armature plate adjusts to compensate for gaps between door and frame
• Complete mounting hardware for typical installations
• Additional brackets available for surface mounting or glass-door mounting
• 12/24VDC Selectable
• Multiple UL listings
  •
    •
      • UL294 Access Control System Units – USA
      • UL1034 Burglary Resistant Electric Lock – USA
