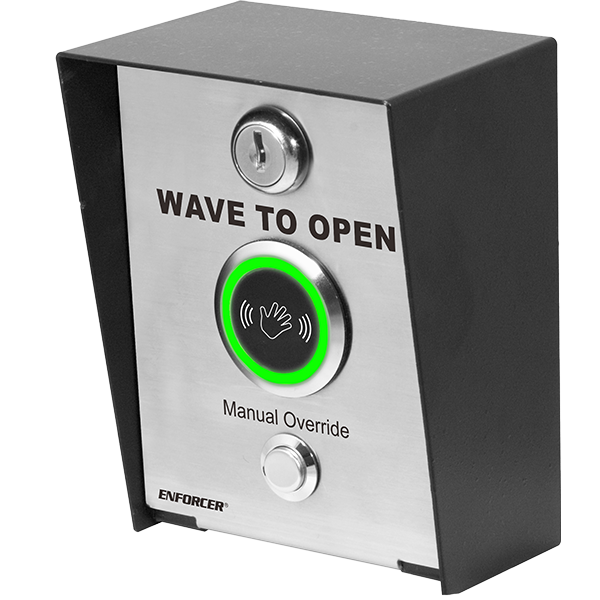

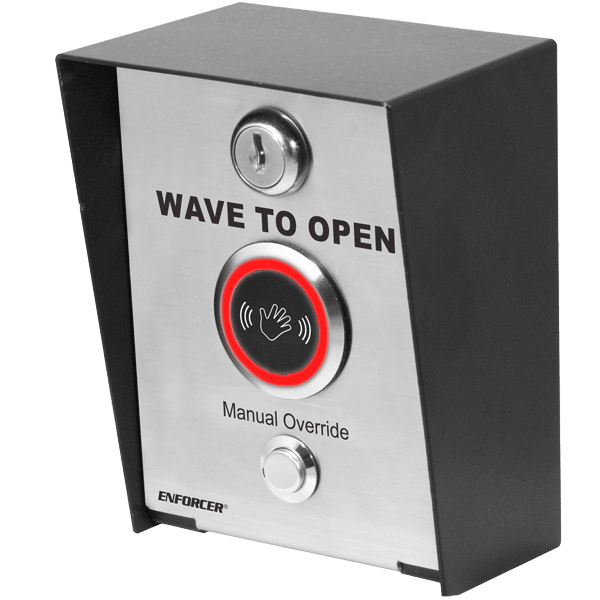

SECO-LARM - SD-9963-KSGQ - Post-Mount Wave-to-Open Sensor with Access Box
Part number:
SD-9963-KSGQ
Price:

The ENFORCER Post-Mount Wave-to-Open Sensor with Access Box and Manual Override Button is a full-featured exit plate which uses IR technology to open a gate or activate a device with the simple wave of a hand reducing the risk of the spread of disease. It is suitable for areas were no special clearance is required for exit and a longer-range sensor may cause unwanted activation. It also includes a manual override button.



Features:

  • ETL UL 294
  • Adjustable sensor range up to 7″ (18cm)
  • Weatherproof (IP65) for outdoor use
  • Stainless steel plate
  • Hinged plate easily removes from box for easy wiring
  • 1A Relay, adjustable trigger duration 0.8~30  seconds or toggle
  • Gooseneck- or wall-mountable
  • Manual override button
  • LED-illuminated sensor area for easy identification
  • Selectable LED colors (turns from red to green or green to red) on sensor activation
  • Includes heavy-duty steel box
Operating Voltage12~24 VDC
Current DrawStandby- 16mA@12VDC / 25mA@24VDC, Triggered- 25mA@12VDC / 32mA@24VDC
Relay TypeForm C dry contact, 1A@30VDC
Response Time10ms
LEDs – StandbyRed
LEDs – TriggeredGreen
Output Time0.8~30 s or toggle
Range2″~7″ (5~18 cm)
IP RatingWeatherproof IP65 (Front panel only)
Operating Temperature-4º~131º F (-20º~55º C)
Weight1-lb 9-oz (710g)
Dimensions4″ x 5-1/2″ x 3″ (102 x 134 x 77 mm)
