SECO-LARM - SD-996C-NUQ - 12/24 VDC Universal Door Strike. Includes three face plates for nearly any type of door. Fail-safe (door unlocks when power is lost) or fail-secure (door locks when power is lost) operation. UL listed.
Part number:
SD-996C-NUQ
Price:

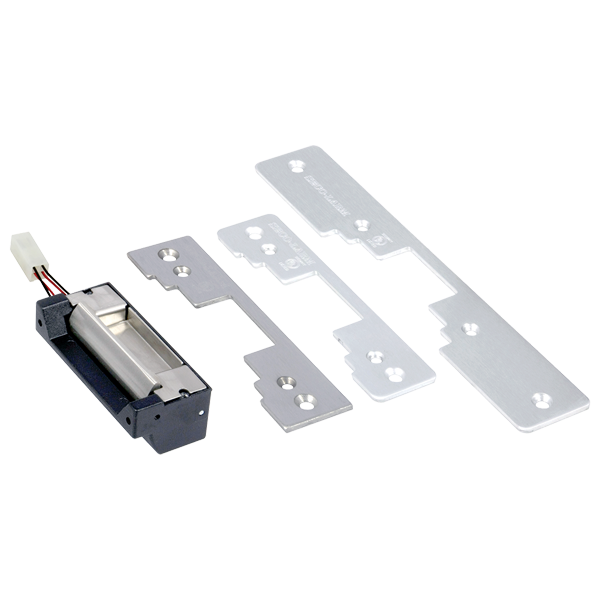

The SECO-LARM Universal Door Strike can be used with virtually any cylindrical-locking system and can be configured for use in wood, aluminum, or metal doors. Included are three different-sized faceplates that can be easily installed on the strike to match the specific type of door frame.
Features:
- UL 294 & UL 1034 Listed
- Includes 3 faceplates for nearly any door type
- Field-selectable for fail-safe or fail-secure operation
- Field-selectable dual-voltage 12/24 VDC operation
- Powered by a solenoid
- Reversible non-handed design fits either right-hand or left-hand doors
- Low profile: Strike is only 1-1/4″ deep for use with hollow aluminum frames
| Operating Voltage | 12 or 24 VDC ±15% |
| Operation | Fail-secure or fail-safe |
| Current Draw | 280mA@12VDC, 140mA@24VDC |
| Jaw Strength | 2,000-lb |
| Operating Temperature | 14°F~113°F (-10°~45° C) |
| Operating Humidity | 85%± 15% |
| Dimensions – Aluminum | 4-7/8″ x 1-1/4″ (124×32 mm) |
| Dimensions – Hollow Metal | 4-7/8″ x 1-1/4″ (124×32 mm) |
| Dimensions – Wood | 7-15/16″ x 1-7/16″ (202×37 mm) |
