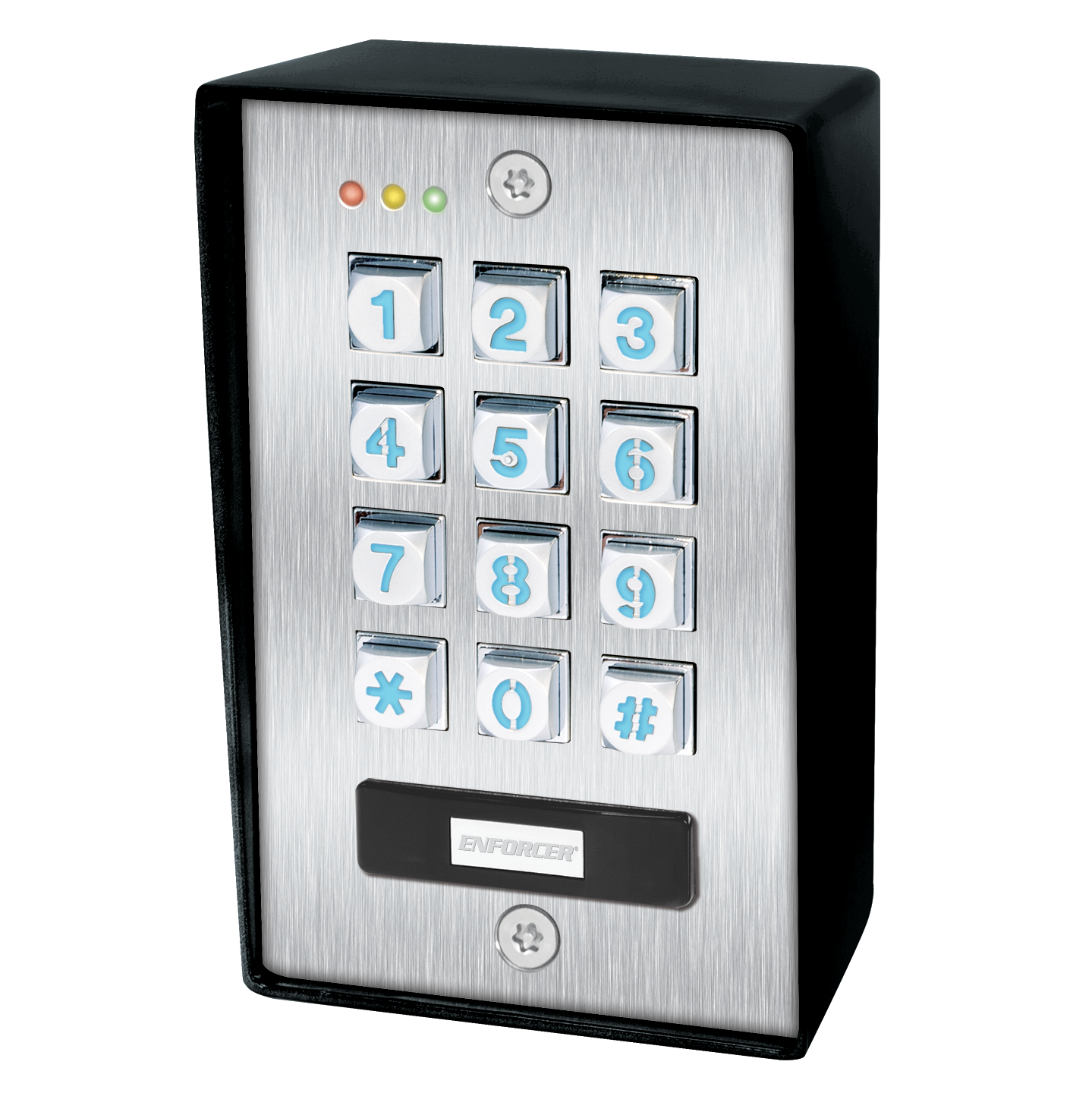

SECO-LARM - SK-1123-SPQ - Vandal Resistant Outdoor Access Control Keypad with Proximity Reader

Surface-Mount Outdoor Illuminated Stand-Alone Keypad with proximity reader. Weather resistant and vandal resistant. 1100 Users, two outputs, 12~24 VDC/VAC operation. Includes duress, quick code, wrong-code lockout, smart egress input, visitor codes, three LEDs, built-in buzzer, and back box.

Features:

• 12~24 VDC/VAC Auto-adjusting operation
• Up to 1,000 possible user codes (000~999) for output 1 and 100 (001~100) for output 2
• Up to 50 (01~50) possible visitor codes, for one-time or limited-time use (1~99 hours)
• Up to 50 (01~50) duress codes for output 1, 10 (01~10) for output 2
• Output 1: Form C relay, 1A@30VDC max. / output 2: Form C relay, 1A@30VDC max.
• Outputs 1 and 2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output N.C. Dry contact, 50mA@24VDC max.
• All features are programmed directly from the keypad No need for an external programmer
• EEPROM Memory protects programmed information in case of power loss
• Egress input lets users exit the premises without keying in the code
• Keypad illuminates when a button is pressed, programmable for FULL or AUTO in standby
• Data I/O terminal for split-series setup providing added security
• Expansion port for future optional features
• Door sensor input for anti-tailgating
• Interlocking input for connecting to a second keypad
• IP66 Weatherproof
• Surface-mount back box included
• Built-in proximity reader
