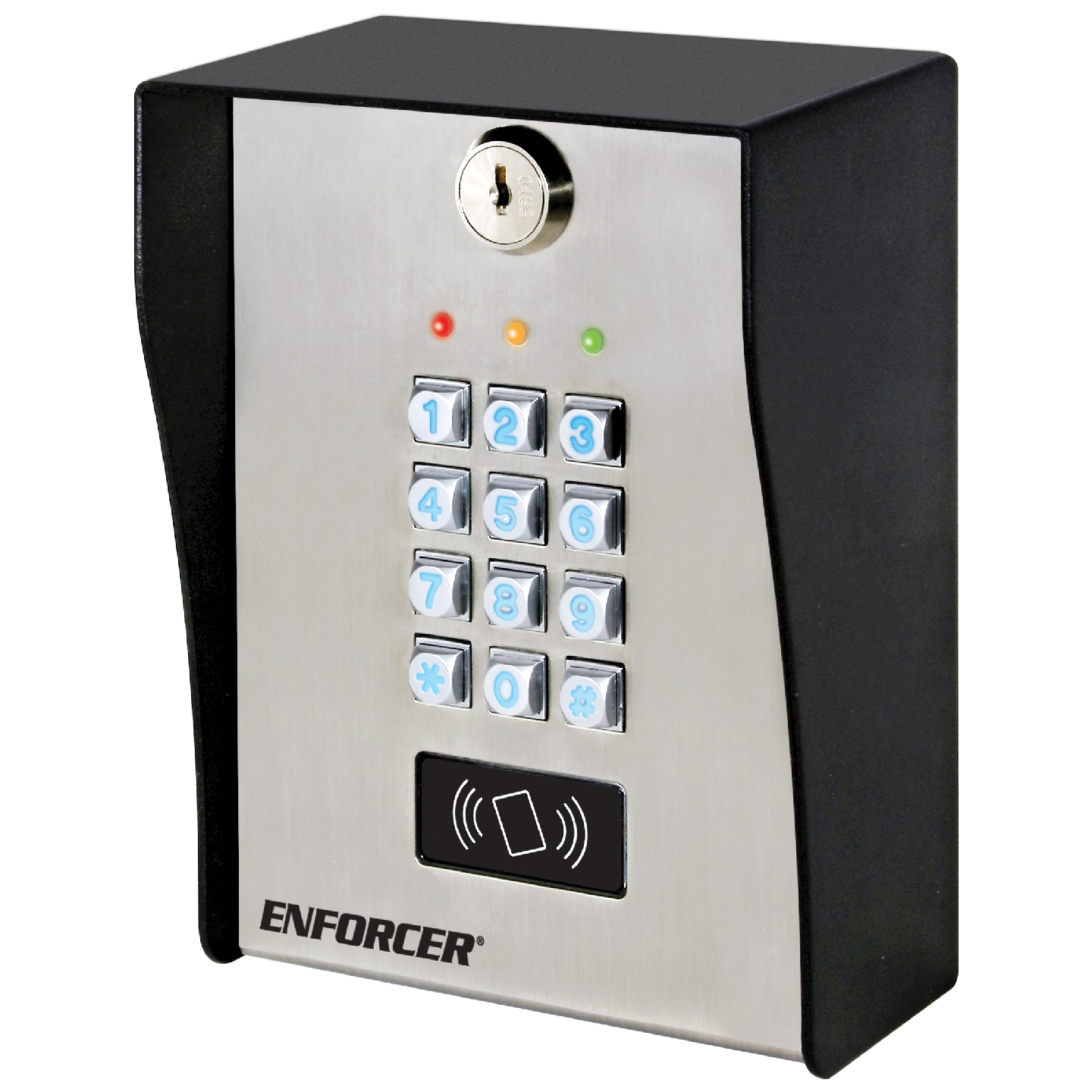

SECO-LARM - SK-3133-PPQ - Heavy-Duty Outdoor Access Control Keypad with Proximity Reader

Heavy Duty Outdoor Keypad with Proximity Reader. Rugged, stainless-steel construction for outdoor use. Individual keys are backlit. Each code can be 4~8 digits. 12~24 VDC/VAC. The ENFORCER SK-3133-PPQ features rugged construction with a heavy-duty stainless-steel faceplate and a coated steel backing to withstand the elements.

Features:

• Rugged construction – heavy-duty stainless steel faceplate with coated steel housing
• Built-in proximity reader
• Wiegand output: 26, 34, 37 bits
• 12~24 VDC/VAC Auto-adjusting operation
• Up to 1,000 possible user codes/cards for output 1 and 100 each for outputs 2 and 3
• Up to 50 possible visitor codes, for one-time or limited-time use (1~99 hours)
• Up to 50 duress codes for output 1 and 10 each for outputs 2 and 3
• Output 1: Form C relay, 5A@24VDC max. / output 2 and 3: Form C relay, 1A@24VDC max.
• Outputs 1, 2 and 3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output, 50mA@24VDC max.
• All features are programmed directly from the keypad, no need for an external programmer
• EEPROM Memory protects programmed information in case of power loss
• Egress input lets users exit the premises without keying in the code
• Door sensor input for anti-tailgating operation
• Interlocking input for connecting to a second keypad
• Keypad illuminates when a button is pressed, programmable for FULL or AUTO in standby
• Vandal-resistant, suitable for wall, post, or gooseneck mounting
• IP66 Weatherproof
