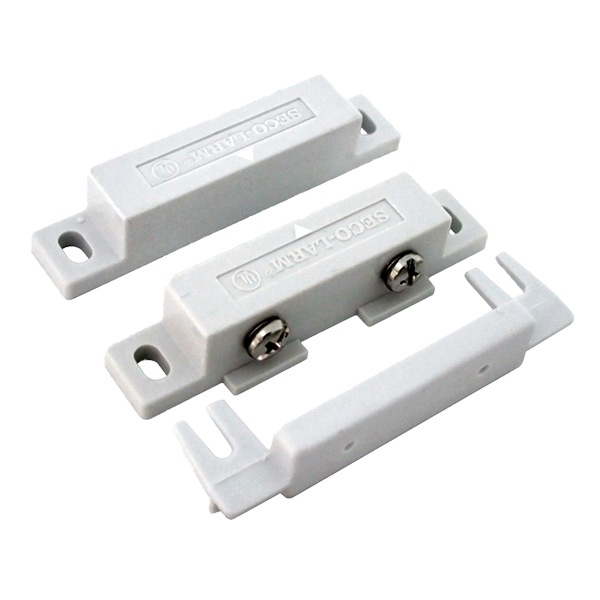

SECO-LARM - SM-200Q/W - Screw-Terminal Surface-Mount Magnetic Contact - White, 3/4″ (19mm) Gap, Closed loop, UL Listed
Part number:
SM-200Q/W
Price:
Surface-Mount Closed Loop Magnetic Contact with screw terminals and cover, white. 3/4" Gap. UL listed. Sold in multiples of 10 (price is for 1 pc).
Features:
- With mounting tabs, screw mount using side tabs
- Terminal cover provided (required for all applications)
- ABS plastic case has lip to prevent wires from accidentally touching metal mountings and slotted mounting holes for easier gap adjustment
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- 3/4″ (19mm) Gap
- Mounting screws included
- Lifetime limited warranty
- White case
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 3/4″ (19mm) |
| Terminals | Screw-type |
| Color | White |
| Mounting Tabs | Yes |
| Material – Case | High-impact ABS plastic |
| Contacts | Deactivated rhodium on gold under-plating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 2-1/2″ x 9/16″ x 1/2″ (63.5 x 14 x 13 mm) |
| Magnet Dimensions | 2-1/2″ x 1/2″ x 1/2″ (63.5 x 13 x 13 mm) |
| Magnet Type | Ferrite |
