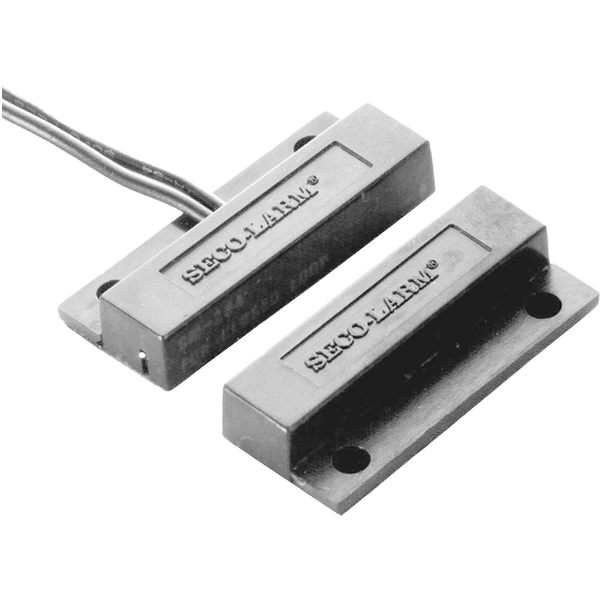

SECO-LARM - SM-204Q/W - Miniature Surface-Mount Magnetic Contact - White, 1″ (25mm), Closed loop, UL Listed
Part number:
SM-204Q/W
Price:
Surface-Mount Closed Loop Magnetic Contact with flange and pre-wired 15" leads from center, white. 1" Gap. Mounts with screws or included 3M tape. UL listed. Sold in multiples of 10 (price is for 1 pc).
Features:
- Miniature brown “flange type” surface-mount magnetic contacts are perfect for sliding doors and windows where space is limited
- Screw or adhesive mount
- Mounting flange breaks off for extra miniature size
- High-impact weatherproof ABS plastic case
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- 15″ (38cm) leads extend from center of switch
- 1″ (25mm) Gap
- Lifetime limited warranty
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 1″ (25mm) |
| Terminals | 15″ (38cm) leads from center |
| Color | White |
| Material – Case | High-impact ABS plastic |
| Contacts | Deactivated rhodium on gold under-plating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 1-3/8″ x 3/8″ x 1/4″ (35 x 10 x 6 mm) |
| Magnet Dimensions | 1-3/8″ x 3/8″ x 1/4″ (35 x 10 x 6 mm) |
| Magnet Type | Alnico 5 |
