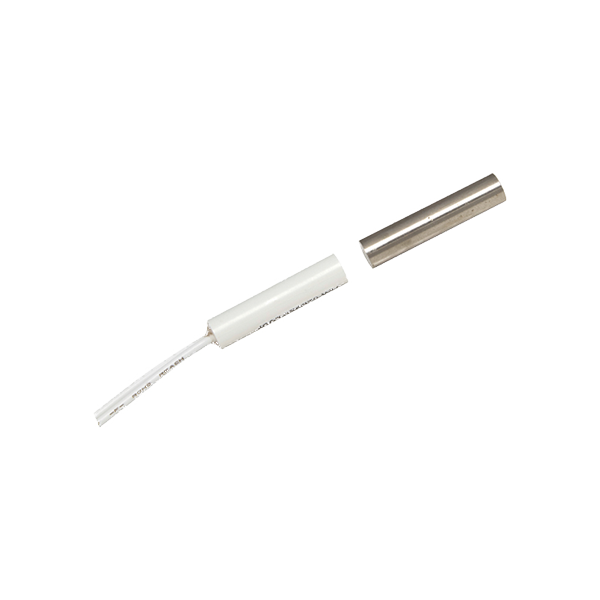

SECO-LARM - SM-206Q/W - 1/4″ Concealed-Mount Magnetic Contact - White, 1″ (25mm) Gap, Closed loop, UL Listed
Part number:
SM-206Q/W
Price:
1/4" Recessed-Mount Closed Loop Magnetic Contact with bare magnet and 15" leads, white. 1" Gap. UL listed. Sold in multiples of 10 (price is for 1 pc).
Features:
- Used for protecting sliding doors and windows where space is limited
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- Unique glue/epoxy compound protects reed switch
- 1/4″, Press-fit mount
- 15″, (38cm) wire leads
- 1″ (25mm) Gap
- Lifetime limited warranty
- White case
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 1″, (25mm) |
| Color | White |
| Leads | Pre-wired 15″, #22 |
| Material – Case | High-impact ABS plastic / epoxy compound |
| Contacts | Deactivated rhodium on gold under-plating |
| Contact Rating | 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 1-7/32″ x 1/4″ (31 x 6.35 mm) |
| Magnet Dimensions | 1-1/4″ x 1/4″ (32 x 6.35 mm) |
| Magnet Type | Alnico 5 |
