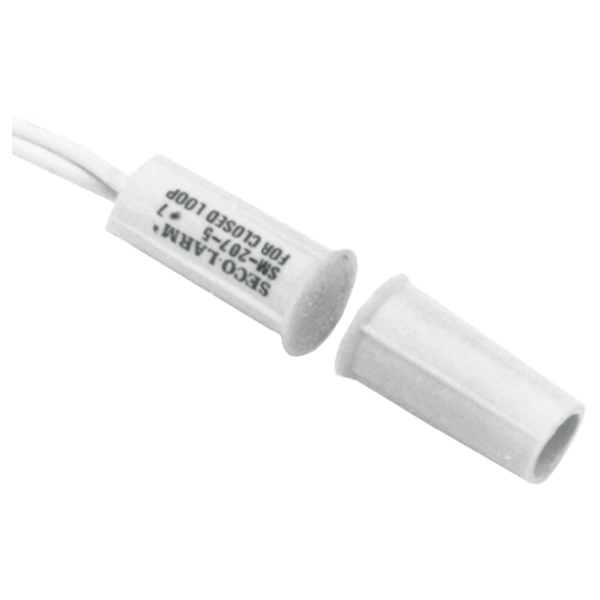

SECO-LARM - SM-207-5Q/W - 3/8″ Concealed-Mount Magnetic Contact, Stubby - White, 3/8″ (10mm) Gap, Closed loop
Part number:
SM-207-5Q/W
Price:
3/8" Diameter Press-Fit Mount Closed Loop Magnetic Contact with stubby switch and stubby magnet. ⅜" Gap. White. Sold in multiples of 10 (price is for 1 pc).
Features:
- Used for protecting sliding doors and windows where space is limited
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- Unique glue/epoxy compound protects reed switch
- 3/8“, Press-fit mount
- 15″ , (38cm) wire leads
- 3/8” (10mm) Gap, with Stubby 3/4” (19mm) Switch and Magnet
- Lifetime limited warranty
- White case
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 3/8″, (10mm) |
| Color | White |
| Leads | Pre-wired 15″, #22 |
| Material – Case | High-impact ABS plastic / epoxy compound |
| Material – Contact | Deactivated rhodium on gold under-plating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 3/4″ x 7/16″ x 3/8″ (19 x 11 x 9 mm) |
| Magnet Dimensions | 3/4″ x 7/16″ x 3/8″ (19 x 11 x 9 mm) |
| Magnet Type | Alnico 5 |
