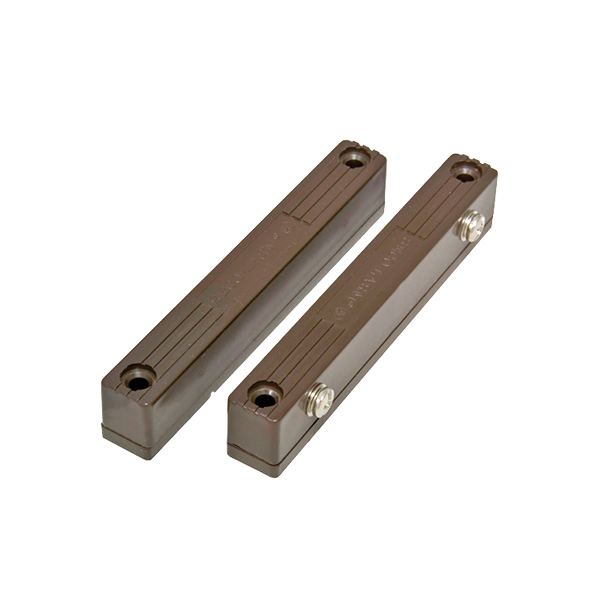

SECO-LARM - SM-216Q/BR - Surface-Mount Closed Loop Magnetic Contact with screw terminals. 2¾" Gap. UL Listed. Brown. Sold in multiples of 10 (price is for 1 pc).
Part number:
SM-216Q/BR
Price:
Surface-Mount Closed Loop Magnetic Contact with screw terminals. 2-3/4" Gap. UL Listed. Brown. Sold in multiples of 10 (price is for 1 pc).
Features:
- Wide-Gap surface-mount magnetic contacts
- Screw mount
- ABS plastic case has integrated mounting holes
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- Wide 2-3/4” (70mm) gap for loose-fitting doors and windows
- Spacers included
- Lifetime limited warranty
- Brown case
| Operating Voltage | 12~24 VDC |
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 2-3/4″ (70mm) |
| Terminals | Screw-type |
| Color | Brown |
| Material – Case | High-impact ABS plastic |
| Contacts | Deactivated rhodium on gold under-plating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 3-15/16″ x 9/16″ x 1/2″ (100 x 14 x 13 mm) |
| Magnet Dimensions | 3-15/16″ x 9/16″ x 1/2″ (100 x 14 x 13 mm) |
| Magnet Type | Alnico 5 |
