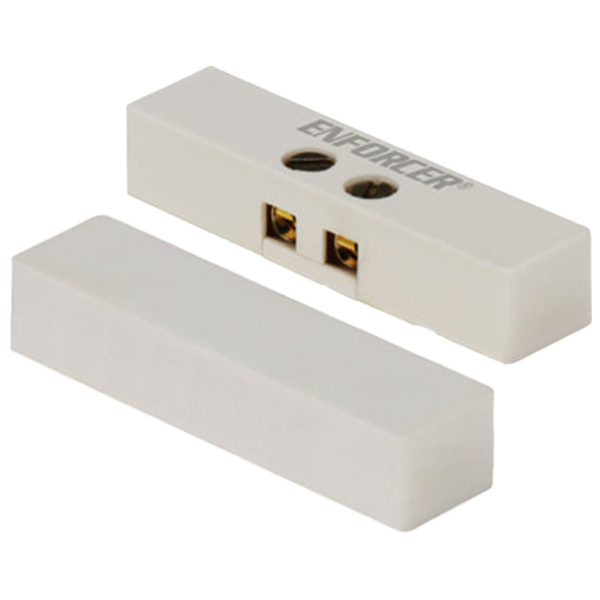

SECO-LARM - SM-4003-TQ/W - Quick-Connect Terminal Surface-Mount Magnetic Contact - White, 1″ (25mm) Gap, Closed loop, UL Listed
Part number:
SM-4003-TQ/W
Price:
Surface-Mount Closed Loop Magnetic Contact with quick-connect terminal block. No mounting tabs. 1" Gap. UL, CUL, Listed. White. Sold in multiples of 10 (price is for 1 pc).
Features:
- Miniature surface-mount magnetic contacts
- Gold-plated screw terminals for longer life and reliability
- Tape to cover screw terminals included
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness for higher handling power and longer life
- 1″ (25mm) Gap
- Mounting tape included
- Lifetime limited warranty
- White
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Terminals | Gold-plated |
| Color | White |
| Mounting Tabs | Adhesive |
| Material – Case | High-impact ABS plastic |
| Contacts | Iridium-plated |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 1-1/2″ x 3/8″ x 19/64″ (38 x 10 x 7.4 mm) |
| Magnet Dimensions | 1-1/2″ x 3/8″ x 9/32″ (38 x 10 x 6.9 mm) |
| Magnet Type | Rare-earth neodymium |
