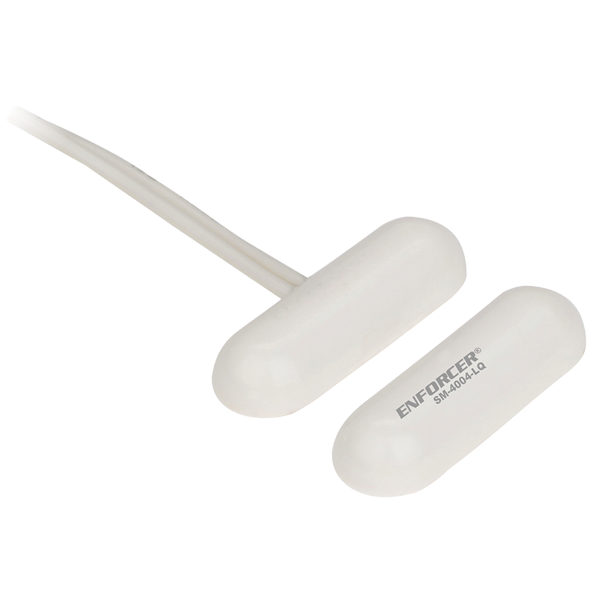

SECO-LARM - SM-4004-LQ/W - Capsule-Type Surface-Mount Magnetic Contact - White, 3/4″ (19mm) Gap, Closed loop
Part number:
SM-4004-LQ/W
Price:
Capsule-Type Surface-Mount Closed Loop Magnetic Contact with quick-connect terminal block and 18" leads. 3/4" Gap. White. Sold in multiples of 10 (price is for 1 pc).
Features:
- Miniature capsule-type surface-mount magnetic contacts
- 18″ (46cm) Wire leads from center
- Adhesive mounting (double-sided tape included)
- Contact reed switch is SPST, ruthenium on gold underplating for a longer expected life
- For closed loop circuits
- 3/4″ (19mm) Gap
- Lifetime limited warranty
| Loop Type | Closed Loop |
| Electrical Configuration | N/O |
| Operation Gap | 3/4″ (19mm) |
| Terminals | 18″ wire leads |
| Color | White |
| Material | High-impact ABS plastic |
| Contacts | Ruthenium on gold underplating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 1″ x 3/8″ x 1/4″ (25 x 10 x 7 mm) |
| Magnet Dimensions | 1″ x 3/8″ x 1/4″ (25 x 10 x 7 mm) |
| Magnet Type | Rare-earth neodymium |
