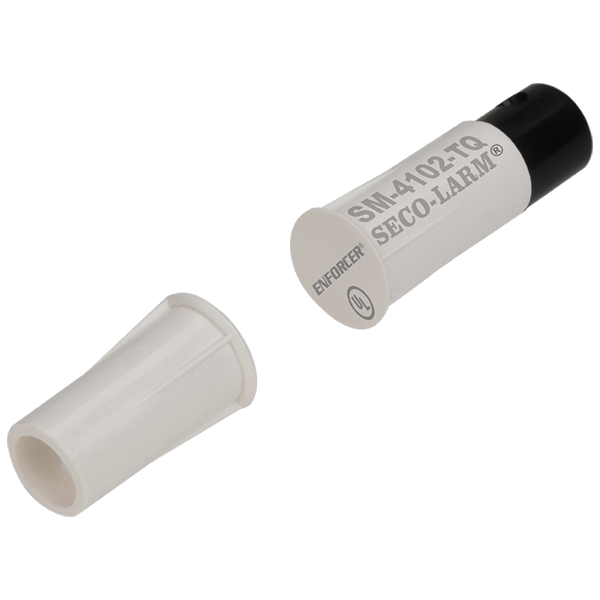

SECO-LARM - SM-4102-TQ/W - 3/8″ Quick-Connect Terminal Recessed-Mount Magnetic Contact - White, 1″ (25mm) Gap, Closed loop, UL Listed
Part number:
SM-4102-TQ/W
Price:
3/8" Stubby Press-Fit Mount Closed Loop Magnetic Contact with quick-connect terminal block. 1" Gap. UL, CUL listed. White. Sold in multiples of 10 (price is for 1 pc).
Features:
- Used for protecting sliding doors and windows where space is limited
- 3/8″ (10mm) Press-fit mount
- Gold-plated terminals for longer expected life and reliability
- Screw terminals
- High-impact ABS plastic
- Miniature size for easier concealment
- Switch and magnet have ribs for securing in holes
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life
- For closed loop circuits
- 1″ (25mm) Gap
- Lifetime limited warranty
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 1″, (25mm) |
| Color | White |
| Material – Case | High-impact ABS plastic |
| Contacts | Gold-plated |
| Contact Rating | 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 1-1/8″ x 7/16″ x 3/8″ (28 x 11 x 9 mm) |
| Magnet Dimensions | 3/4″ x 7/16″ x 3/8″ (19 x 11 x 9 mm) |
| Magnet Type | Rare-earth Neodymium |
