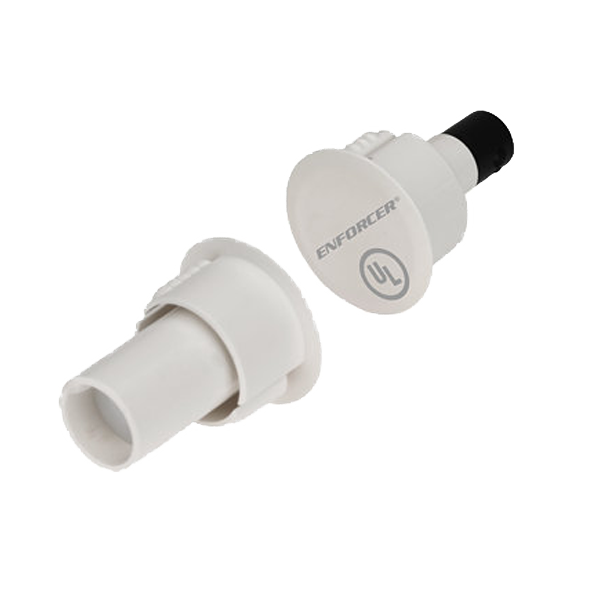

SECO-LARM - SM-4104-TQ/W - 3/4″ Steel-Door Quick-Connect Terminals Recessed-Mount Magnetic Contact - White, 1″ (25mm) Gap, Closed loop, UL Listed
Part number:
SM-4104-TQ/W
Price:
3/4 Steel Door Recessed Closed Loop Magnetic Contact with quick-connect terminals. 1" Gap. UL, CUL Listed. White. Sold in Multiples of 10. (price is for 1 pc).
Features:
- Used for steel framed doors and windows where space is limited or to avoid unsightly installations
- Strong one-piece construction
- Gold-plated terminals for longer life and reliability
- Screw terminals
- Switch and magnet have ribs for securing in holes
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, for higher handling power and a long life
- 1″ (25mm) Gap
- High-impact white ABS plastic
- Lifetime limited warranty
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 1″ (25mm) |
| Color | White |
| Material – Case | High-impact ABS plastic |
| Material – Terminals | Gold-plated |
| Contacts | Iridium-plated |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 1-3/16″ x 15/16″ x 3/8″ (30 x 24 x 9 mm) |
| Magnet Dimensions | 1-3/16″ x 15/16″ x 1/2″ (30 x 24 x 13 mm) |
| Magnet Type | Rare-earth Neodymium alloy |
