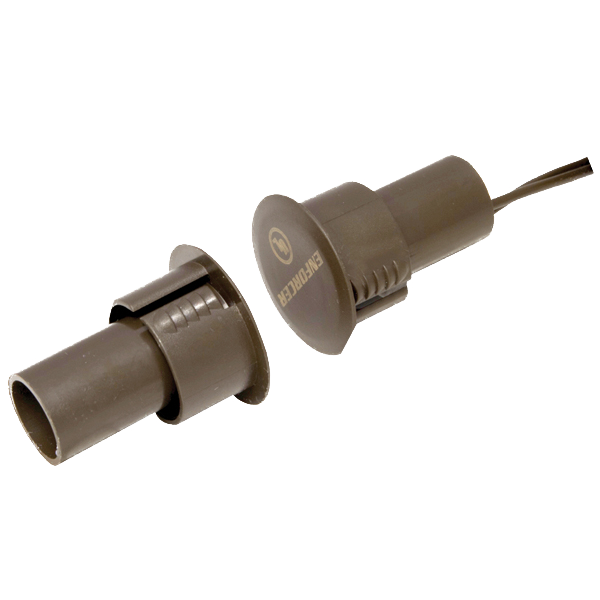

SECO-LARM - SM-4105-LQ/B - 3/4″ Steel-Door Recessed-Mount Magnetic Contact - Brown, 1″ (25mm) Gap, Closed loop, UL Listed
Part number:
SM-4105-LQ/B
Price:
3/4 Steel Door Recessed Closed Loop Magnetic Contact with quick-connect terminals. 1" Gap. 18" leads. UL, CUL Listed. Brown. Sold in Multiples of 10. (price is for 1 pc).
Features:
- Used for steel framed doors and windows where space is limited or to avoid unsightly installations
- Strong one-piece construction
- Switch and magnet have ribs for securing in holes
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, supporting higher handling power and longer life
- 1″ (25mm) Gap, with 18″ (46cm) wire leads
- Lifetime limited warranty
- Brown case, high-impact ABS plastic
| Loop Type | N.C. |
| Operation Gap | 1″ (25mm) |
| Color | Brown |
| Material – Case | High-impact ABS plastic |
| Material – Terminals | 18″ (46cm) leads |
| Contacts | Iridium-plated |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -68º~158º F (-20º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 1-3/16″ x 15/16″ x 3/4″ (30 x 24 x 19 mm) |
| Magnet Dimensions | 1-3/16″ x 15/16″ x 3/4″ (30 x 24 x 19 mm) |
| Magnet Type | Rare-earth Neodymium alloy |
