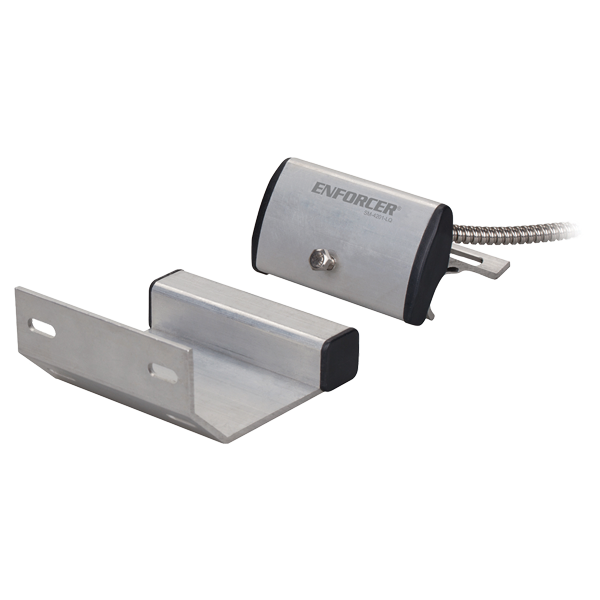

SECO-LARM - SM-4201-LQ - Track-Mount Overhead Door Magnetic Contact, 3″ (76mm) Gap, Closed loop
Part number:
SM-4201-LQ
Price:
Track-Mount N.C Overhead Magnetic Door Contact. Rugged aluminum housing with 36" leads enclosed in armored cable. 3" Gap. (minimum order quantity of 5)
Features:
- Used for overhead doors in both industrial and residential situations where a wide gap is present
- Adjustable to fit most door-channel widths
- Rugged aluminum housing
- 36″ (91cm) Wire leads enclosed in armored cable
- Contact Type: SPST, iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life
- For closed loop circuits
- 3″ (76mm) Gap
- IP65 Weatherproof
- Mounting bracket included
- Lifetime limited warranty
| Loop Type | Closed Loop |
| Operation Gap | 3″ (76mm) |
| Material – Case | Aluminum |
| Material – Terminals | 36″ (91cm) armored leads |
| Contacts | Iridium-plated |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 3-1/8″x2-5/8″x1-13/16″ (79x66x46 mm) |
| Magnet Dimensions | 3-1/4″x3-9/16″x1-3/4″ (82x90x44 mm) |
| Magnet Type | Ferrite |
| IP Rating | Weatherproof IP65 |
