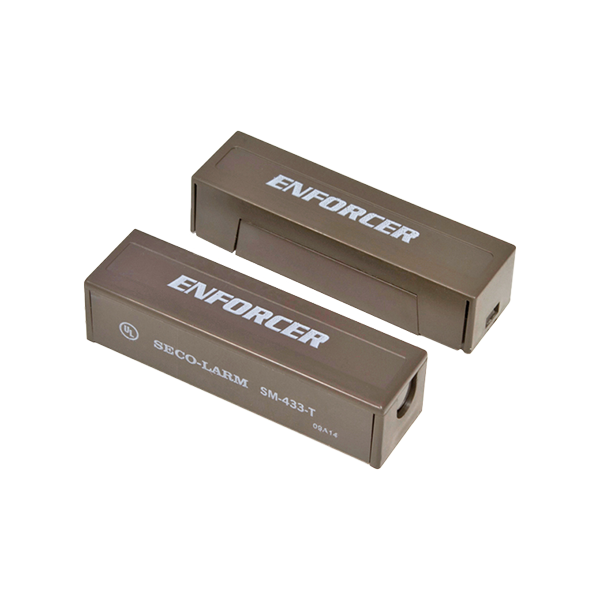

SECO-LARM - SM-433-TQ/B - Surface-Mount Closed Loop Magnetic Contact with concealed screw terminals. 1¼'' Gap. UL, CUL Listed. Brown. Sold in multiples of 10 (price is for 1 pc).
Part number:
SM-433-TQ/B
Price:
Surface-Mount Closed Loop Magnetic Contact with concealed screw terminals. 1¼'' Gap. UL, CUL Listed. Brown. Sold in multiples of 10 (price is for 1 pc).
Features:
- Cover hides mounting screws, terminal block, and wires
- Gold-plated screw terminals for longer life and reliability
- Contact reed switch is SPST, iridium-plated to have a high melting point, and Vickers hardness, for higher handling power and a long life
- 1-1/4″ (31mm) Gap
- Lifetime limited warranty
- Brown case
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Color | Brown |
| Material – Case | High-impact ABS plastic |
| Material – Terminals | Gold-plated |
| Contacts | Iridium-plating |
| Contact Rating | 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 2″ x 9/16″ x 1/2″ (51 x 14 x 13 mm) |
| Magnet Dimensions | 2″ x 9/16″ x 1/2″ (51 x 14 x 13 mm) |
| Magnet Type | Rare-earth neodymium |
