SECO-LARM - SS-040Q/W - Vibration Detector (White)
Part number:
SS-040Q/W
Price:

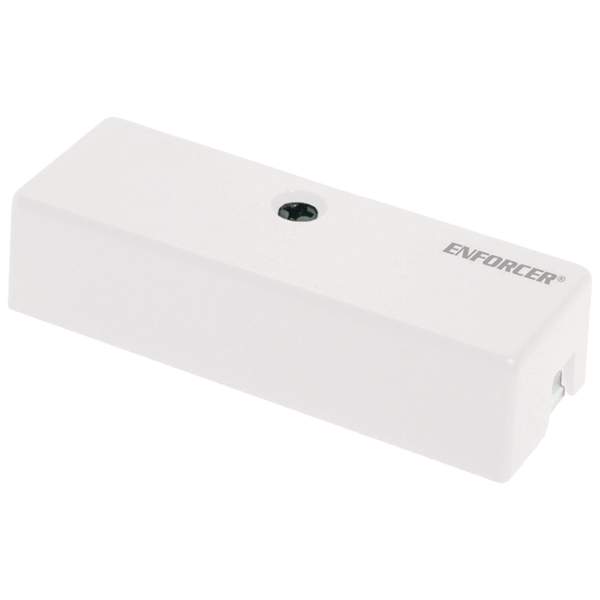

The ENFORCER Mini Shock/Vibration Detector is designed for protection against forced entry by a hammer, saw, crowbar, etc. through walls, ceilings, windows, safes, cabinets, etc. For use in closed-circuit alarm systems, it will initiate an alarm when a vibration of considerable force strikes the protected surface. A built-in tamper switch is independently wired from the vibration detector for enhanced security. Vibration contacts are adjustable to respond on any surface – glass, wood, steel, plasterboard, or brick. Pure silver contacts with gold plating ensure years of long-term operation. Its compact, dust-tight ABS case is easily mounted with double-sided adhesive tape.



Features:

  • For use in closed-circuit alarm systems
  • Pure silver contacts with gold plating ensure reliable and long-term operation
  • Ideal for protecting glass windows, showcases, solid walls, ceilings, safes, cabinets, motorcycles, skylights, etc.
  • Small size for discreet installation
  • Built-in tamper switch provides enhanced security
  • Adjustable contact pressure for different surfaces
  • Detects a vibration/shock on a protected surface and activates an alarm
  • Available in Brown or White
Circuit typeN.C., Momentarily open when activated
Current rating1A@50VDC
ContactSilver with gold plating
Contact pressureAdjustable from 1 to 50 grams but recommended setting between 5 and 25 grams only. Supplied with pressure of approx. 6 grams
Contact break timeApprox. 45ms max. (at 6-gram pressure)
Estimated lifeOver 100,000 cycles
HousingABS resin
Operating humidity5~90%, non-condensing
Operating  temperature-40°~167° F (-40°~75° C)
Dimensions2-3/8″x13/16″x5/8″ (60x21x15 mm)
Weight0.7-oz (20g)
Name
Description
Size
Downloads
File
Datasheet
0.9mb
File
Manual
0.2mb
