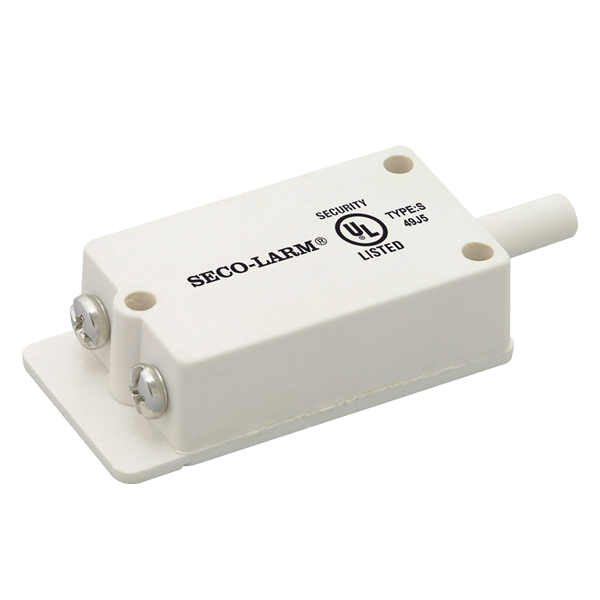

SECO-LARM - SS-073Q - Tamper Switch For Normally Open Tamper Circuits
Part number:
SS-073Q
Price:

N.O. Tamper Switch. Plunger-type, SPST, screw terminals. For panel/bell/siren boxes. UL listed. White. Sold in multiples of 10 (price is for 1 pc).



Features:

  • Tamper switch for drawers and alarm boxes
  • Silver-plated contacts ensure reliable long-term operation
  • High-impact white plastic case, screw terminals
  • For normally open tamper circuits
  • UL Listed for supplementary protection
Plunger Pushed InContact open
Plunger ReleasedContact closed
Contact Rating0.5A@24VDC
MaterialHigh-impact Plastic Resin
Dimensions2-3/4″ x 1-1/16″ x 5/8″ (70 x 28 x 16 mm)
Weight18 gm
