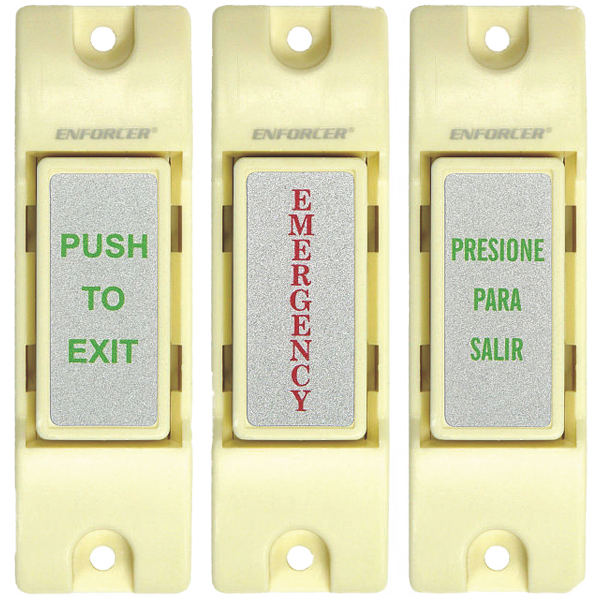

SECO-LARM - SS-075C-PEQ - Emergency & Push-to-Exit Button with Concealed Connections
Part number:
SS-075C-PEQ
Price:

NO/NC Momentary Surface-Mount Switch. Includes labels: "EMERGENCY", "PUSH TO EXIT," and "PRESIONE PARA SALIR". Contact rated 0.5A@12VDC. Sold in multiples of 10 (price is for 1 pc).



Features:

  • 3 labels included: choose between “Emergency,” “Push to Exit,” and “Presione Para Salir.”
  • N.O. or N.C. (selectable) momentary contact.
  • Contact rated 1.0A@12VDC.
  • Screw terminals.
  • Off-white.
  • Dimensions: 3″x15/16“x5/8” (76mm x 23mm x 15mm).
ContactNO or NC (selectable) momentary contact
Switch rating1.0A@12VDC
Operating voltage12~24 VDC
Terminal typeScrew Terminal
ColorOff-white
Dimensions3″x15/16″x5/8″ (76x23x15 mm)
