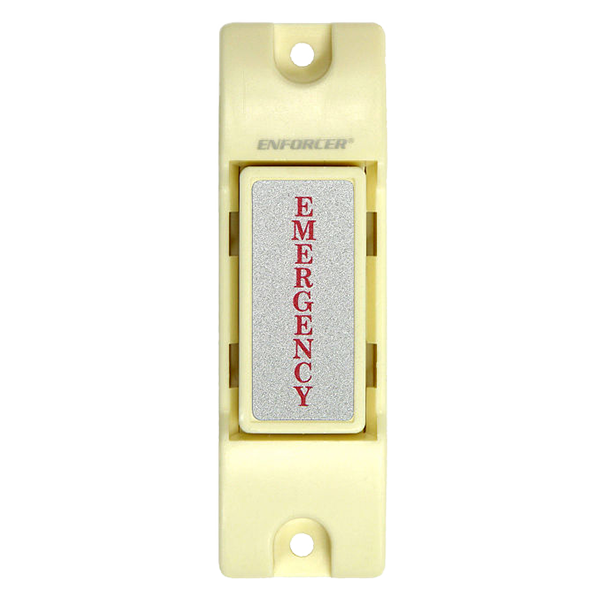

SECO-LARM - SS-075Q - Emergency, N.O. Button
Part number:
SS-075Q
Price:
N.O. Momentary Surface-Mounted Switch. “EMERGENCY” printed on face. Contact rated 0.5A@12VDC. Off-white. Sold in multiples of 10 (price is for 1 pc).
Features:
- Large button has “Emergency” printed on face*
- NO or NC (selectable) momentary contact†
- Contact rated 0.5A@12VDC (1.0A@12VDC for SS-075C-PEQ)
- Screw terminals
- Off-white
| Operating voltage | 12~24 VDC |
| Contact | N.O. (Push-to-close) |
| Switch rating | 0.5A@12VDC |
| Connections | Screw terminals |
| Operating humidity | 0~95%, non-condensing |
| Operating temperature | -40°~167° F (-40°~75° C) |
| Dimensions | 3″x15/16″x5/8″ (76x23x15 mm) |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Manual
0.2mb
