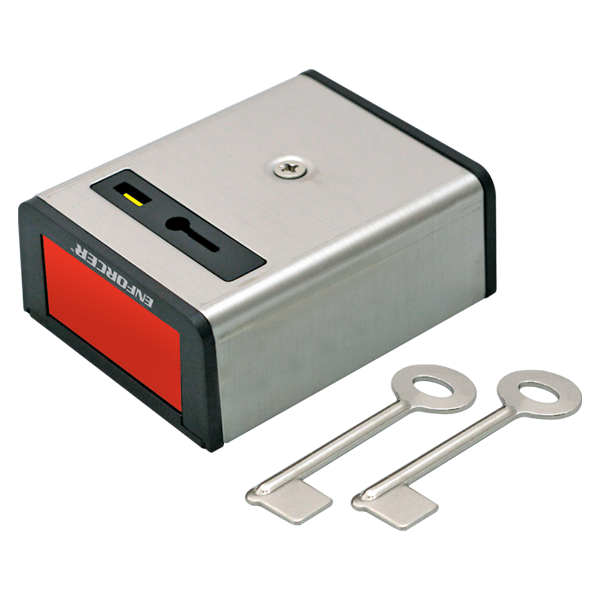

SECO-LARM - SS-077Q - Latching Holdup Button, N.C. (Push-to-Open) Operation
Part number:
SS-077Q
Price:
Latching N.C. Panic Button. Push-to-open, with key reset. 1A@12VDC. Surface-mount ABS plastic case with stainless-steel cover.
Features:
- Latching holdup buttons
- Latching pushbutton; flag shows when pressed; two reset keys included
- High-impact ABS case, stainless-steel cover, SPST switch rated 1 Amp, 12VDC
| Contacts | Normally closed, latching open |
| Switch Type | SPST |
| Switch Rating | 12VDC @ 1Amp |
| Terminal Type | Screws (2) |
| Mounting Type | Surface |
| Dimensions | 2-3/4″ x 1-1/4″ x 1-1/16″ (70 x 56 x 27 mm) |
| Case | ABS plastic |
| Cover | Stainless steel |
Name
Description
Size
Downloads
File
Manual
0.1mb
