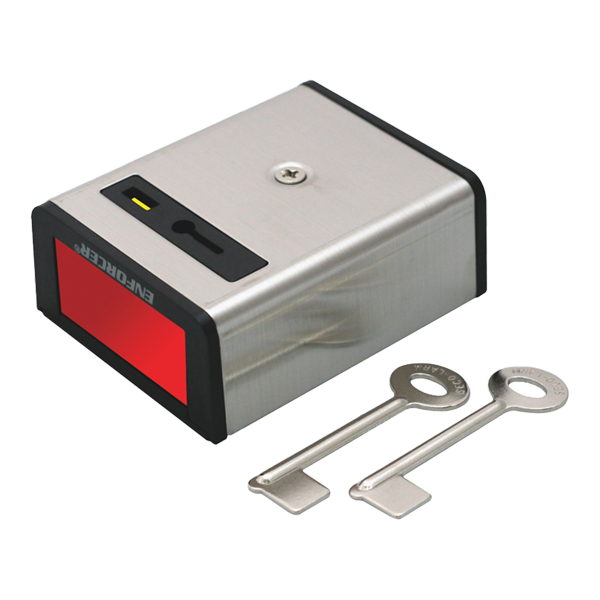

SECO-LARM - SS-078Q - Latching Holdup Button, N.O. (Push-to-Close) Operation
Part number:
SS-078Q
Price:
Latching N.O. Panic Button. Push-to-close, with key reset. 1A@12VDC. Surface-mount ABS plastic case with stainless-steel cover.
Features:
- Latching Holdup Buttons
- Latching pushbutton, flag shows when pressed, two reset keys included
- High-impact ABS case, stainless-steel cover, SPST switch rated 1 Amp, 12VDC
| Contacts | Normally open, latching closed |
| Switch Type | SPST |
| Switch Rating | 12VDC @ 1Amp |
| Terminal Type | Screws (2) |
| Mounting Type | Surface |
| Dimensions | 2-3/4″ x 2-1/4″ x 1-1/16″ (70 x 56 x 27 mm) |
| Case | ABS plastic |
| Cover | Stainless steel |
Name
Description
Size
Downloads
File
Manual
0.1mb
