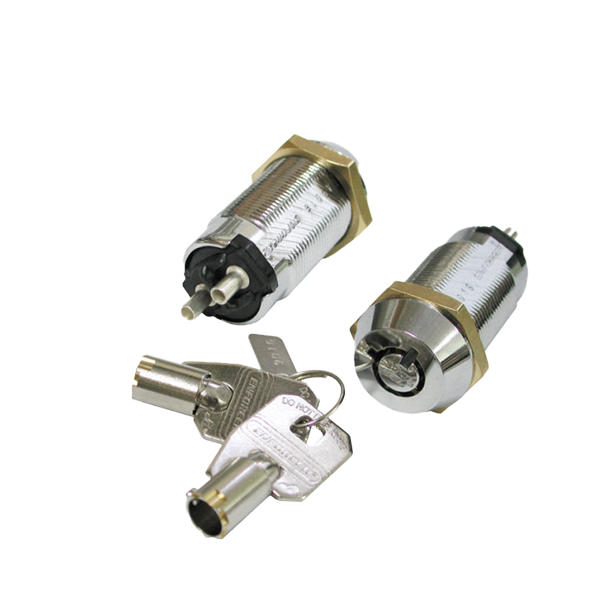

SECO-LARM - SS-090-2H8 - Tubular Keylock Switch - Shunt ON/OFF, 2 Terminals, SPST, #1308
Part number:
SS-090-2H8
Price:

High-Security Tubular Key Lock, SPST, shunt-ON/OFF. Key removable from ON & OFF position. Key #1308. Sold in multiples of 5 (price is for 1 pc).



Features:

  • Shunt ON/OFF 2 terminals, SPST
  • Maintained ON-OFF, key removable from both ON and OFF positions
  • Commonly used as ON/OFF switch to arm/disarm alarm or shunt zone
  • 12VDC, 2 Amps max.​
  • ​Key Number – 1308
Voltage12VDC
Amperage2
No. of Terminals2
Switching TypeSPST
Name
Description
Size
Downloads
File
Datasheet
0.5mb
