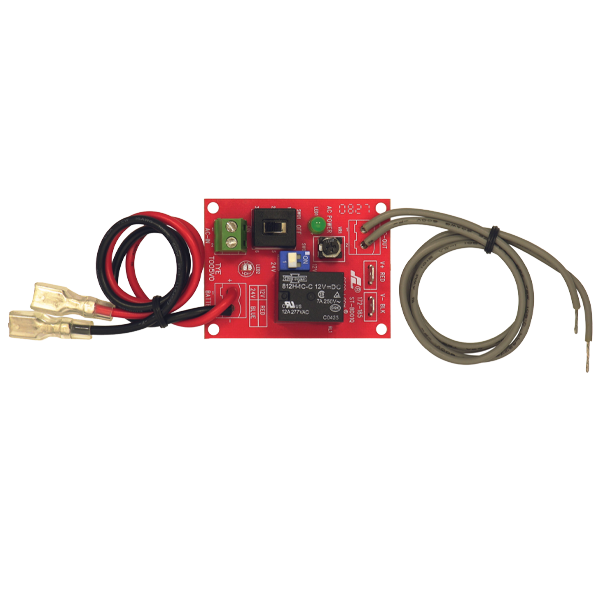

SECO-LARM - ST-BD01Q - Low Battery Cutoff. Prevents the deep discharge of backup batteries. Selectable input 12 or 24VDC. Adjustable voltage cut-off and restore point.
Part number:
ST-BD01Q
Price:
The ENFORCER Low-Voltage Battery Cutoff prevents deep discharge of backup batteries. The ST-BD01Q ties directly into most 12 or 24 VDC power supplies or alarm panels for easy plug-and-play installation. A Master On/Off switch easily connects or disconnects the battery and AC power supply from the control panel.
Features:
- Selectable input 12/24VDC
- Adjustable voltage cutoff and restore point
- Master On/Off switch
- Green LED AC power indicator
- Dual-color DC LED indicator
- Includes battery leads and double-sided tape
| Relay contact rating | 7A@30VDC |
| LED Indicators | AC: Green DC: Red = 12VDC / Blue = 24VDC |
| Connections | AC Input: Terminal block AC Output: Gray wire leads DC: On-board male spade terminals* |
| Operating humidity | Up to 90%, non-condensing |
| Operating temperature | -40°~149° F (-40°~65° C) |
| Dimensions | 2-3/8″ x 1-3/4″ x 7/8″ (60x45x22 mm) |
| Weight | 2.2-oz (63g) |
