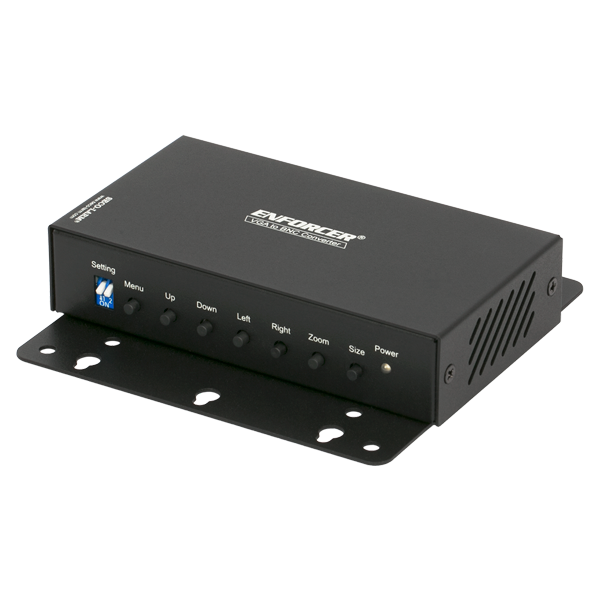

The VC-2VAQ converts your VGA signal to be viewed on any TV, projector, or other viewing device that uses a standard BNC connector. A VGA output allows simultaneous viewing on a VGA monitor. The converter is compact and can be mounted nearly anywhere. For example, use the included VESA bracket for mounting on most VGA monitors.

Features:

• Connect a DVR with VGA output to an existing monitor with BNC input
• Video standards: NTSC/PAL
• Auto configure resolution: Up to 1024×768 (up to 75Hz)
• Dual composite video (BNC) and VGA output ports
• On-screen display (OSD) for image adjustments including size, brightness, contrast, hue, saturation, sharpness, and more
• Quick installation – no driver or operating system requirements
• Gold-plated BNC connector for longer life
• Includes 5VDC power supply
