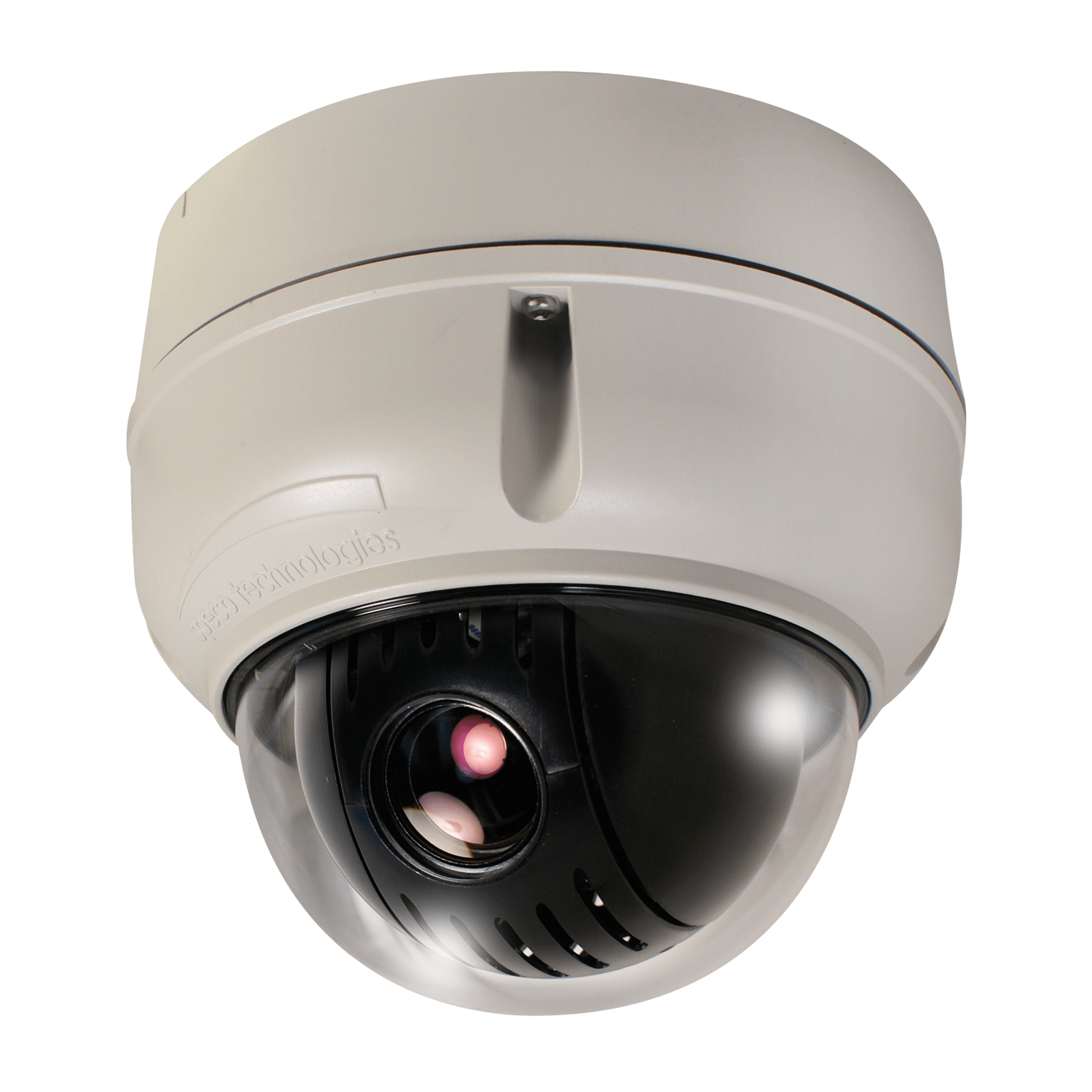

SPECO - HTPTZ20T - 2MP HD-TVI Indoor/Outdoor PTZ Speed Dome Camera with 20x Optical Zoom Lens, TAA
2MP HD-TVI Indoor/Outdoor PTZ Speed Dome Camera with 20x Optical Zoom Lens, TAA
Part number:
HTPTZ20T
Price:
• 4.7 – 94mm 20x optical zoom lens
• Full HD 1080p @ 30fps
• 20x optical zoom lens
• True WDR (wide dynamic range) function
• True Day/Night function
• 240 preset positions
• 4 Alarm Inputs / 2 Alarm Outputs
• 16x digital zoom
• Max 380°/sec speed
• Additional analog output for 960H
• Full OSD control via UTC (pan, tilt, and zoom)
• IP66 compliant, weather resistant
• 1 year warranty
| Camera Specifications | |
| Image Sensor | 1/2.8” Sony Starvis CMOS Sensor |
| Resolution | 1080p @ 30fps / 720p @ 60fps |
| Minimum Illumination | Color: 0.35 lux, BW 0.013 lux, 50IRE |
| S/N Ratio | More than 50dB |
| Video Output | HD-TVI, Composite |
| Total Pixels | 1945 (H) x 1097 (V) |
| Scanning System | Progressive |
| Zoom | 20x (optical) |
| Focal Length | 3.9mm (wide) - 85.8mm (tele) |
| Max. Aperture Ratio | F1.6 (wide) - F3.7 (tele) |
| Angular Field Of View | 3.9mm - 49.5° (H) / 85.8mm - 2.4° (H) |
| Focus | Auto / Manual / One Push / Constant Manual |
| PTZ Function | |
| Pan Range | 360° Endless |
| Pan Speed | Max: 380°/sec (preset) |
| Tilt Range | 10° – 190° (digital flip) |
| Tilt Speed | Max: 380°/sec (preset) |
| Preset Positions | 240 |
| Tour | 8 |
| Pattern | 8 |
| Operational Specifications | |
| Camera Title | On / Off (6 character) |
| Defog | Yes |
| Day/Night | Auto / Color / BW / Global |
| Motion Detection | Yes |
| Wide Dynamic Range | On / Off |
| Backlight Compensation | Yes |
| Digital Image Stabilization | On / Off |
| Privacy Masking | 16 |
| Digital Noise Reduction | 3DNR |
| Digital Slow Shutter | On / Off |
| Operational Specifications (continued) | |
| White Balance | Auto / Fluorescent / Incandescent / Outdoor / Manual |
| Electronic Shutter Speed | Auto / Manual |
| Digital Zoom | 16x |
| AGC | Min. / Low / Middle / High |
| Communication | RS-485, UTC |
| Protocol | Speco-C (TVI), Pelco-D (Analog), Pelco-P (Analog) |
| Alarm | 4 Inputs, 2 Outputs |
| Operating Temperature / Humidity | 14° F – 122° F / 0% – 90% RH (non-condensing) |
| Input Voltage | 12VDC / 24VAC |
| Power Supply | 12VDC / 24VAC, dual voltage operation (power supply not included) |
| Power Consumption | 1A |
| Dimensions | 5.51” (H) x 6.06” (Dia.) |
| Weight | 3.3 lbs. |
