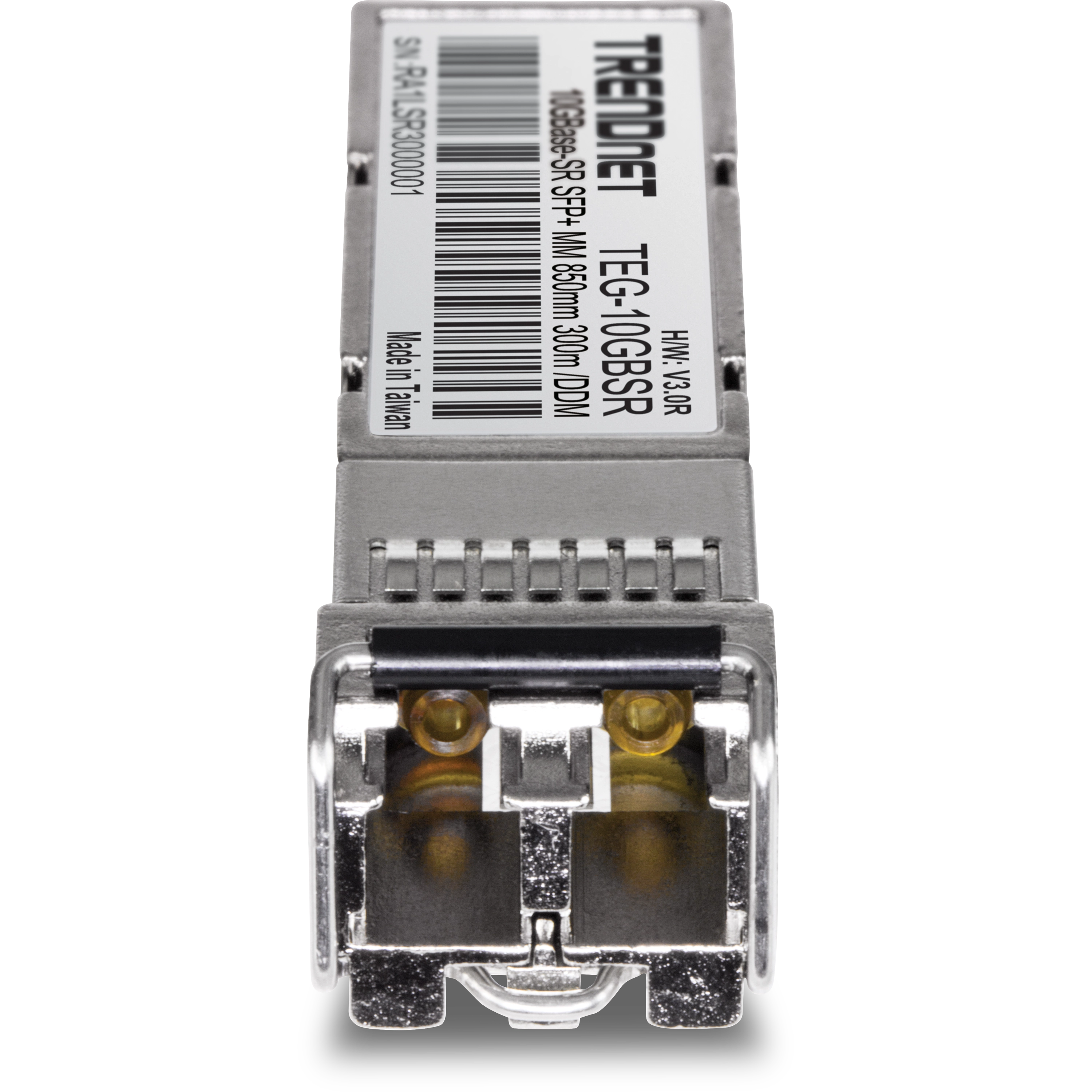

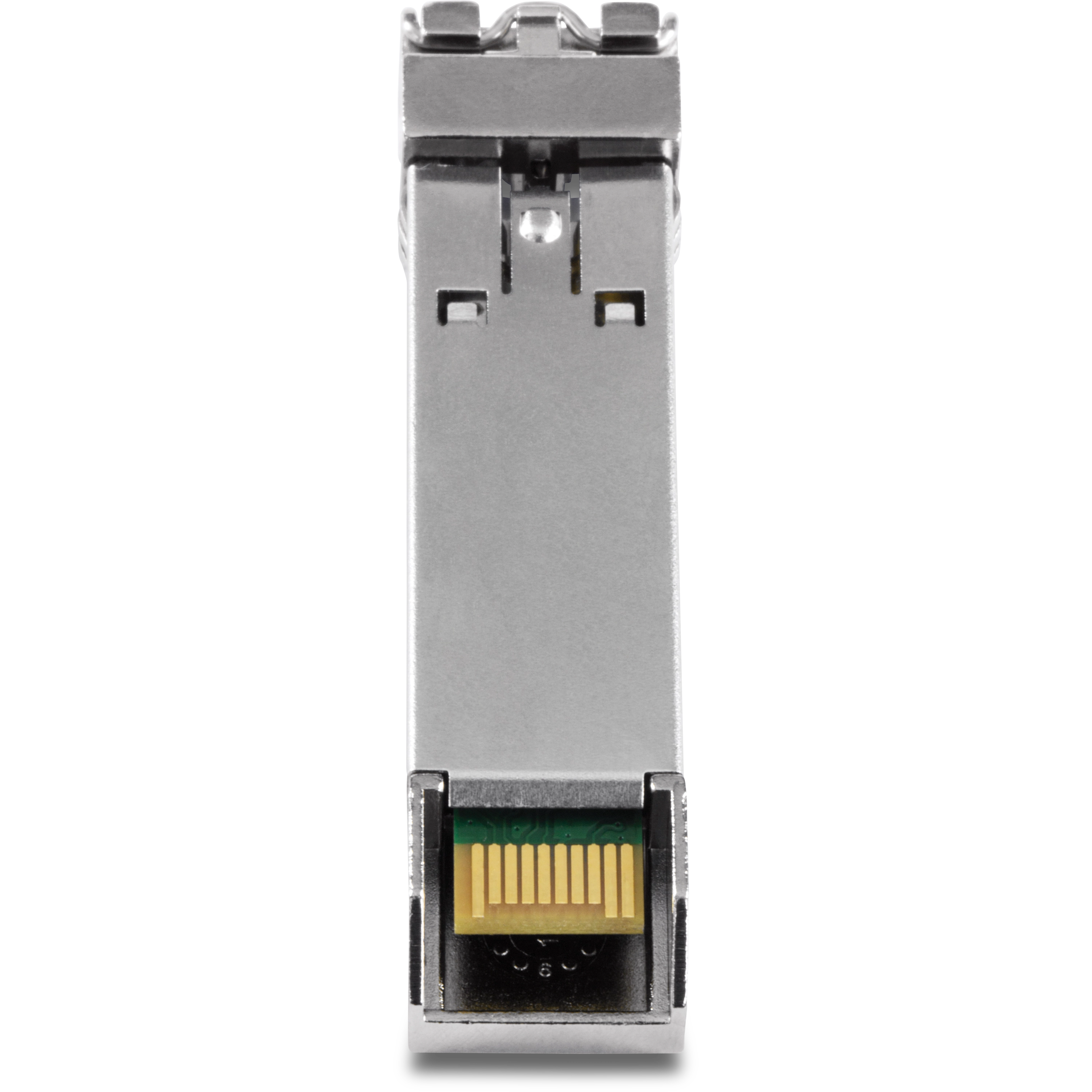

Trendenet - TEG-10GBSR/2 - Two-Pack 10GBASE-SR SFP+ Multi Mode LC Module (300m with DDM)
Part number:
Price:
- • Includes two TEG-10GBSR modules
- • Hot-pluggable SFP+ transceiver
- • SFP+ MSA compliant
- • Supported throughput up to 10.5Gbps
- • Multi Mode fiber for distances up to 300m (984 ft.)
- • 850nm wavelength
- • Duplex LC connector
- • Digital Diagnostics Monitoring (DDM) support
- • Operating temperature: 0° – 70° C (32° – 158° F)
- • Single 3.3 V power source
- • NDAA / TAA compliant (U.S. and Canada only)
- • Lifetime Warranty
| Standards | • IEEE 802.3ae • 10GBASE-SR |
| Device Interface | • 10Gbps SFP+ MSA Compliant • LC/UPC duplex connector |
| Data Transfer Rate | 8.5-10.5Gbps |
| Wavelength | 850nm |
| Optical Output Power | -1 ~ -7.5dBm |
| Distance | • 400m (OM4) • 300m (OM3) • 82m (OM2) • 33m (OM1) |
| Special Features | • Hot pluggable • Metal enclosure • DDM support |
| Sensitivity | -14 dBm |
| Power | Max. consumption: 439mW |
| Operating Temperature | 0 – 70 °C (32 - 158 °F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions | 14.8 x 56.5 x 11.85mm (0.6 x 2.2 x 0.5 in) per unit |
| Weight | 22g (0.7 oz.) per unit |
| Certifications | CE, FCC |
| Warranty | Lifetime Warranty |
| Package Contents | • 2 x TEG-10GBSR |
Name
Description
Size
Downloads
File
TEG-10GBSR/2 - Two-Pack 10GBASE-SR SFP+ Multi Mode LC Module - Datasheet.pdf
0.4mb
TRENDnet’s hot-pluggable 2-Pack 10GBASE-SR SFP+ Multi Mode LC Module, model TEG-10GBSR/2, works with an MSA compliant SFP+ port. This Multi Mode transceiver spans distances up to 300m (984 ft.), comes with a LC duplex connector, and supports up to 10.5 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters, such as transmit/receive power, temperature, and voltage.
