Trendnet - TI-SG704 - Industrial 10G PoE++ Splitter

Name: Trendnet - TI-SG704 - Industrial 10G PoE++ Splitter
Brand: Trendnet
SKU: TI-SG704

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• Power a non-PoE device up to 100m (328 ft.) away from PSE
• Splits a 10G 90W PoE++ signal into separate power and data sources
• Adjustable voltage output supports 12V, 16V, 24V, or 48V devices
• Extreme operating temperature range -40 to 75° C (-40 to 167° F)
• IEEE 802.3bt compliant
• For best performance pair with TRENDnet PoE++ switches or injectors
• NDAA / TAA compliant (U.S. and Canada only)

Standards	• IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3bz • IEEE 802.3an • IEEE 802.3af • IEEE 802.3at • IEEE 802.3bt

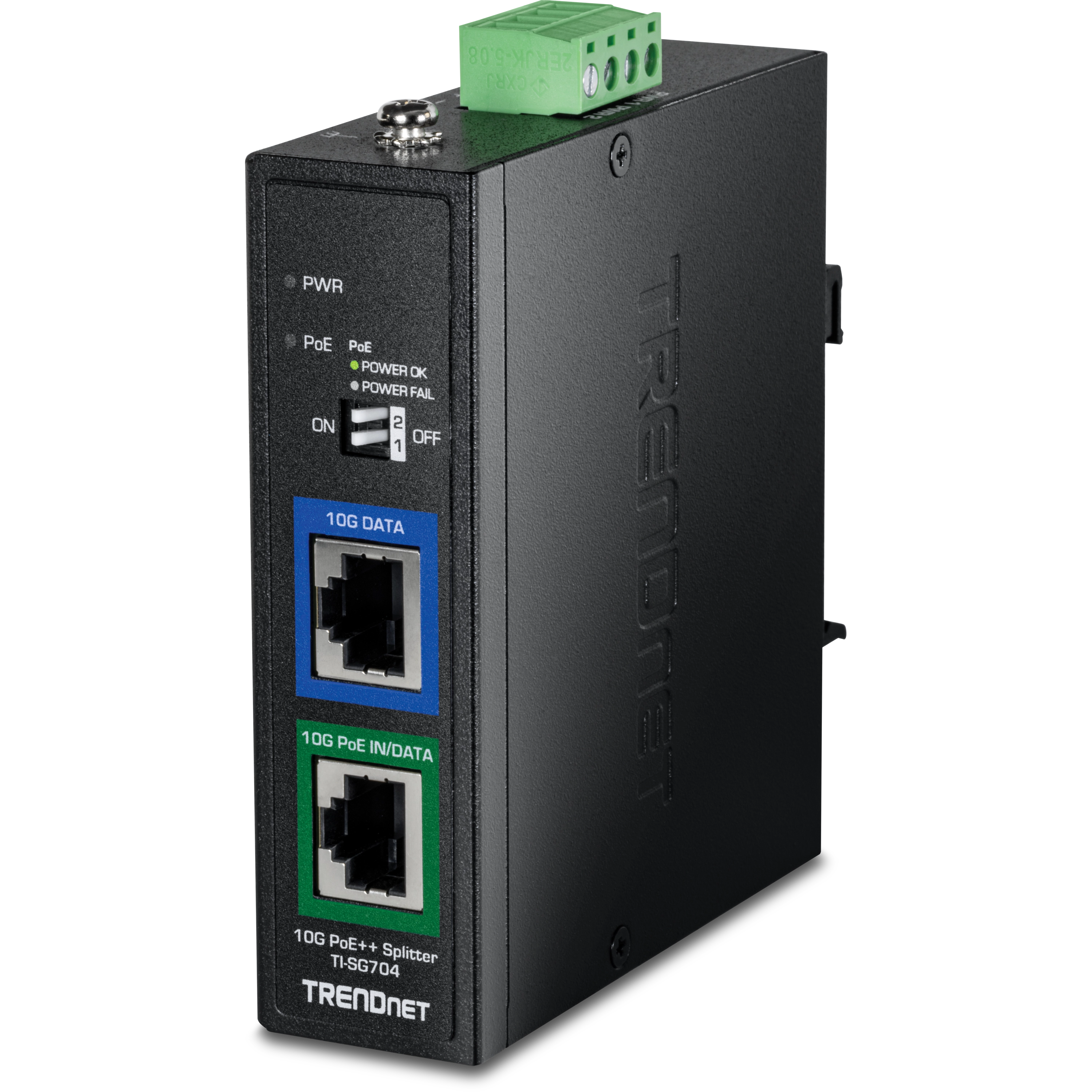

Device Interface	• 1 x 10G port (10Mbps/100Mbps/1000Mbps/2.5G/10G) • 1 x 10G PoE++ in port (10Mbps/100Mbps/1000Mbps/2.5G/10G) • 4-pin removable terminal block (dual DC output) • Adjustable output power DIP switch (48V, 24V, 16V, 12V) • LED indicator
Power	• Input: 15.4W/30W/60W/90W PoE power • Max. consumption: 1.13W (splitter only) • Max. combined DC Output: 48V (1.25A), 24V (2.3A), 16V (2.3A), 12V (2.3A)
PoE Input – Max. DC Output (split between two devices)	• 90W: 48V (1.25A) DC Output: 60W, 24V (2.3A) DC Output: 55W, 16V (2.3A) DC Output: 36.8W, 12V (2.3A) DC Output: 27.6W • 60W: 48V (1.05A) DC Output: 50W, 24V (2.04A) DC Output: 49W, 16V (2.18A) DC Output: 35W, 12V (2.16A) DC Output: 26W • 30W: 48V (0.52A) DC Output: 25W, 24V (0.95A) DC Output: 23W, 16V (1.37A) DC Output: 22W, 12V (1.83A) DC Output: 22W • 15.4W: 48V (0.22A) DC Output: 10.6W, 24V (0.44A) DC Output: 10.7W, 16V (0.63A) DC Output: 10.2W, 12V (0.85A) DC Output: 10.2W

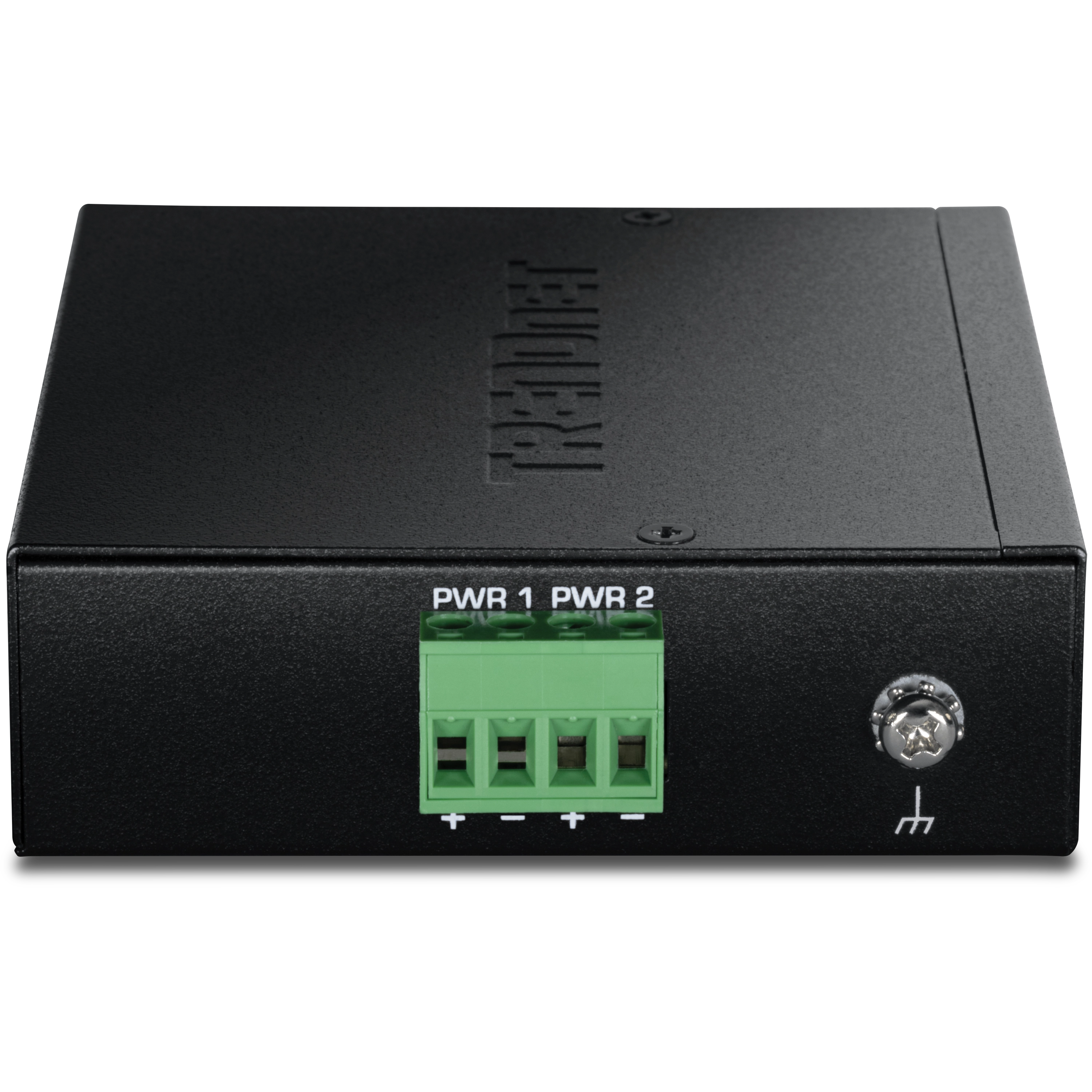

Terminal Block	• Dual DC power outputs, 4 pin • Wire range: 0.75mm2 to 2.5mm2 • Solid wire (AWG): 12-18 • Stranded wire (AWG): 12-18 • Torque: 3 lb. – In / 0.2Nm / 0.56Nm • Wire strip length: 6-7mm
DIP Switch*	DIP 1 / DIP 2 / Function On / On / 48V DC (default) On / Off / 24V DC Off / On / 16V DC Off / Off / 12V DC
MTBF	812,314 hours @ 25° C

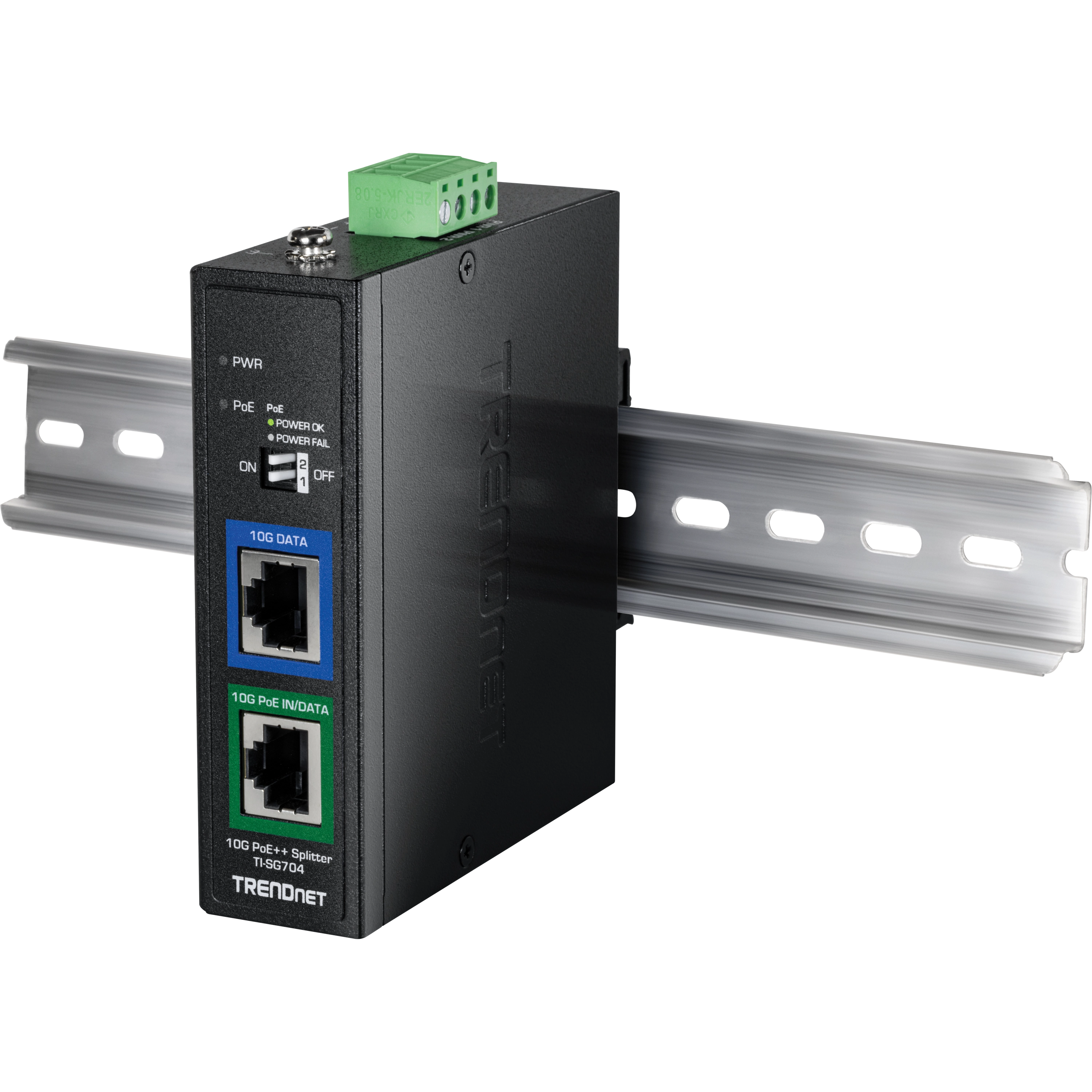

Housing	• IP50 metal housing • DIN-Rail mount • Wall mount • Grounding point • 6kV ESD protection • 6kV surge protection • 6kV RJ45 protection
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	99 x 90 x 28mm (3.9 x 3.54 x 1.1 in.)
Weight	432g (15.2 oz.)
Certifications	• CE • FCC • LVD • Shock (IEC 60068-2-27) • Freefall (IEC 60068-2-31) • Vibration (IEC 60068-2-6)
Warranty	3 year
Package Contents	• TI-SG704 • Removable terminal block • DIN-Rail and wall-mount kit

Name

Description

Size

Downloads

File

TI-SG704 - Industrial 10G PoE++ Splitter - Datasheet.pdf

0.2mb

The TI-SG704 Industrial 10G PoE++ Splitter from TRENDnet networks a non-PoE device using a 10G PoE++ connection, splitting it into separate DC power and data sources. The TI-SG704 can power up to two devices from a single PoE source. The convenient DIP switch adjusts the output power to 12V, 16V, 24V or 48V, matching the varying power requirements of non-PoE devices. The multiple power outputs of the industrial 10G PoE++ splitter provide greater device compatibility.
