Trendnet - TI-FGSC - Hardened Industrial 1000BASE-LX Multi-Mode SC Fiber Converter (1km, 0.62mi.)
- • Hardened IP50-rated industrial compact media converter
- • 1000BASE-LX (1310nm) multi-mode fiber for distances of up to 1km (0.62 mi)
- • 1 x Gigabit RJ45 port and 1 x SC-type interface port
- • Operating temperature range of -40° – 75° C (-40° – 167° F)
- • 12 – 60V DC power input with overload current protection
- • 6kV RJ45 Ethernet surge protection
- • Fanless design for silent operation

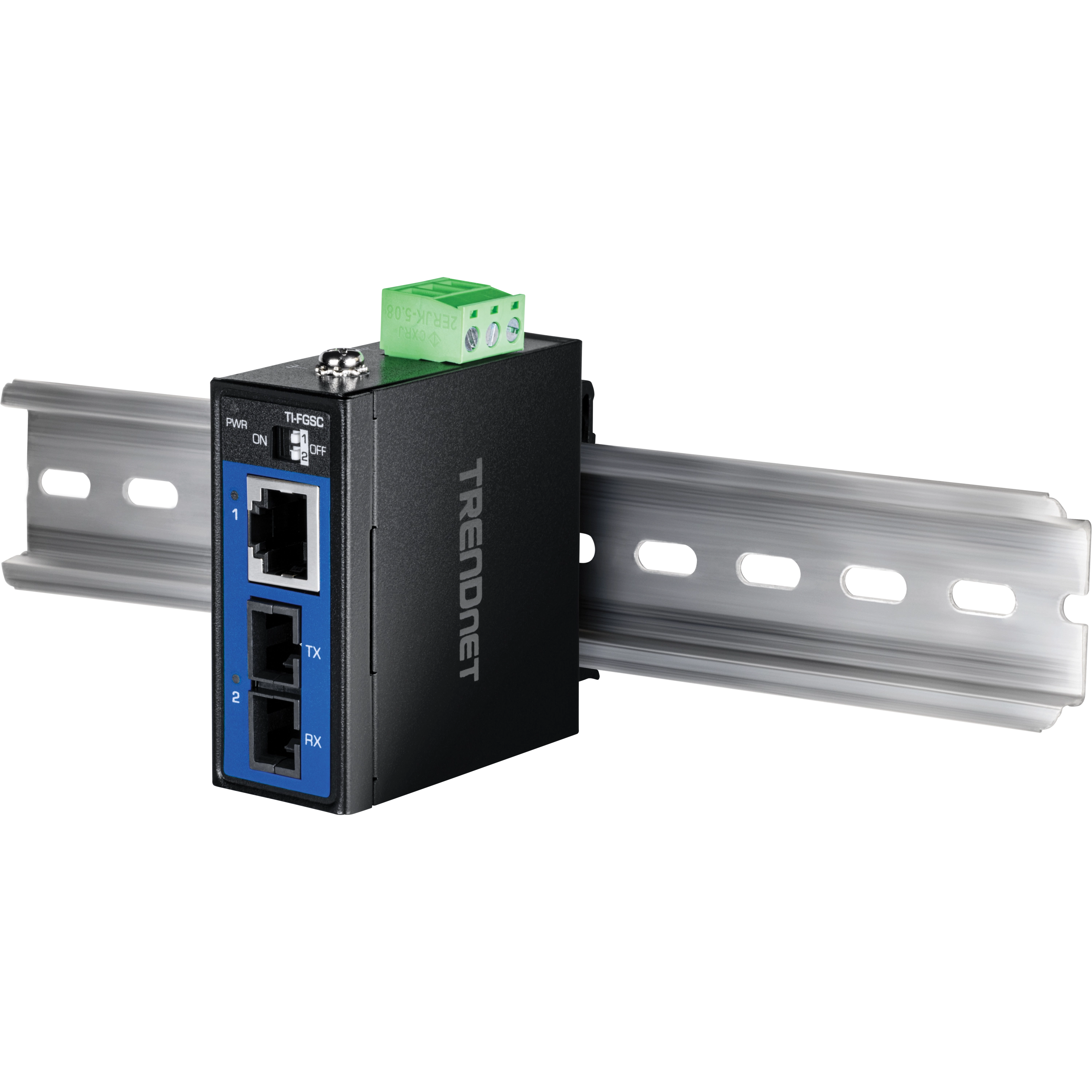

- • Includes DIN-Rail mount and wall mount brackets
- • Power supply sold separately (model: TI-M6024)
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3x • IEEE 802.3z |
| Device Interface | • 1 x Gigabit RJ45 Auto-MDIX port • 1 x 1000BASE-LX SC-type multi-mode fiber optic port • 2 x DIP Switches (1: LFPT, 2: Switch/Converter Mode) • 3-pin removable terminal block • LED indicators |
| Data Transfer Rate | • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) • Gigabit: 2Gbps (full duplex) • Fiber: 2Gbps (full duplex) |
| Switching Capacity | 4Gbps |
| MAC Address Table | 1K entries |
| Jumbo Frame | 16KB |
| Forwarding rate | 2.98Mpps (64-byte packet size) |
| Fiber Media | Multi-mode SC fiber optic connector |
| Fiber Cable | 50 / 125 µm |
| Fiber Wavelength | 1310 nm |
| Fiber Distance | 1km (0.62 mi.) |
| Power | • Input: 12 – 60V DC • Compatible power supply: TI-M6024 (sold separately) • Max. consumption: 2.148W |

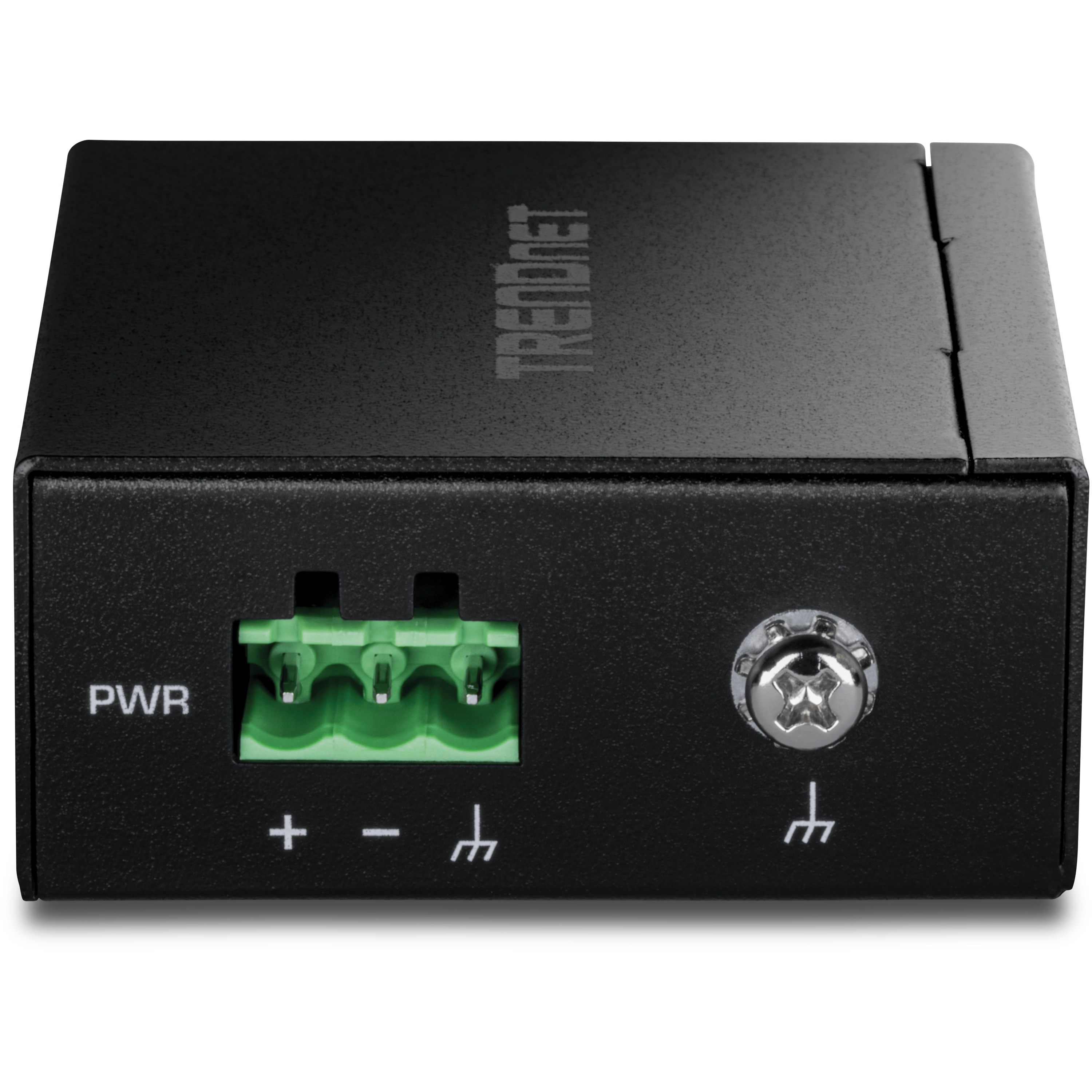

| Terminal Block | • 3-pin terminal block • Wire range: 1.5mm2 • Solid wire (AWG): 16-28 • Stranded Wire (AWG): 16-28 • Torque: 3 lb. – In / 0.2Nm / 0.56Nm • Wire strip length: 6-7mm |
| MTBF | 5,109,029 hours @ 25° C |
| Enclosure | • IP50 metal case • DIN-Rail mountable • Wall mountable • Ground terminal • 6kV ESD protection • 6kV RJ45 surge protection |
| Operating Temperature | -40° – 75° C (-40° – 167° F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions | 62 x 58 x 27mm (2.4 x 2.3 x 1.1 in.) |
| Weight | 148g (5.2 oz.) |
| Certifications | CE, FCC, LVD, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-31), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
| Warranty | 3-year |
| Package Contents | • TI-FGSC • Removable terminal block • DIN-Rail and wall mount kit |
TRENDnet’s Hardened Industrial 1000BASE-LX Multi-Mode SC Fibre Converter model TI-FGSC features a Gigabit RJ45 port and a 1000BASE-LX SC interface port, making it ideal for building-to-building or long-distance fibre optic cable runs of up to 1 km (0.62 mi). The compact, IP50-rated design of this industrial multi-mode media converter allows for flexible installation and provides ingress dust protection. It also includes DIN-rail and wall mounting hardware options. The rugged design of the industrial SC fibre converter provides resistance to standard levels of shock and vibration compliance, and it operates within an extreme temperature range of -40° – 75° C (-40° – 167° F). Front panel DIP switches allow for quick switching between switch/converter modes and enable or disable Link Fault Pass Through.
