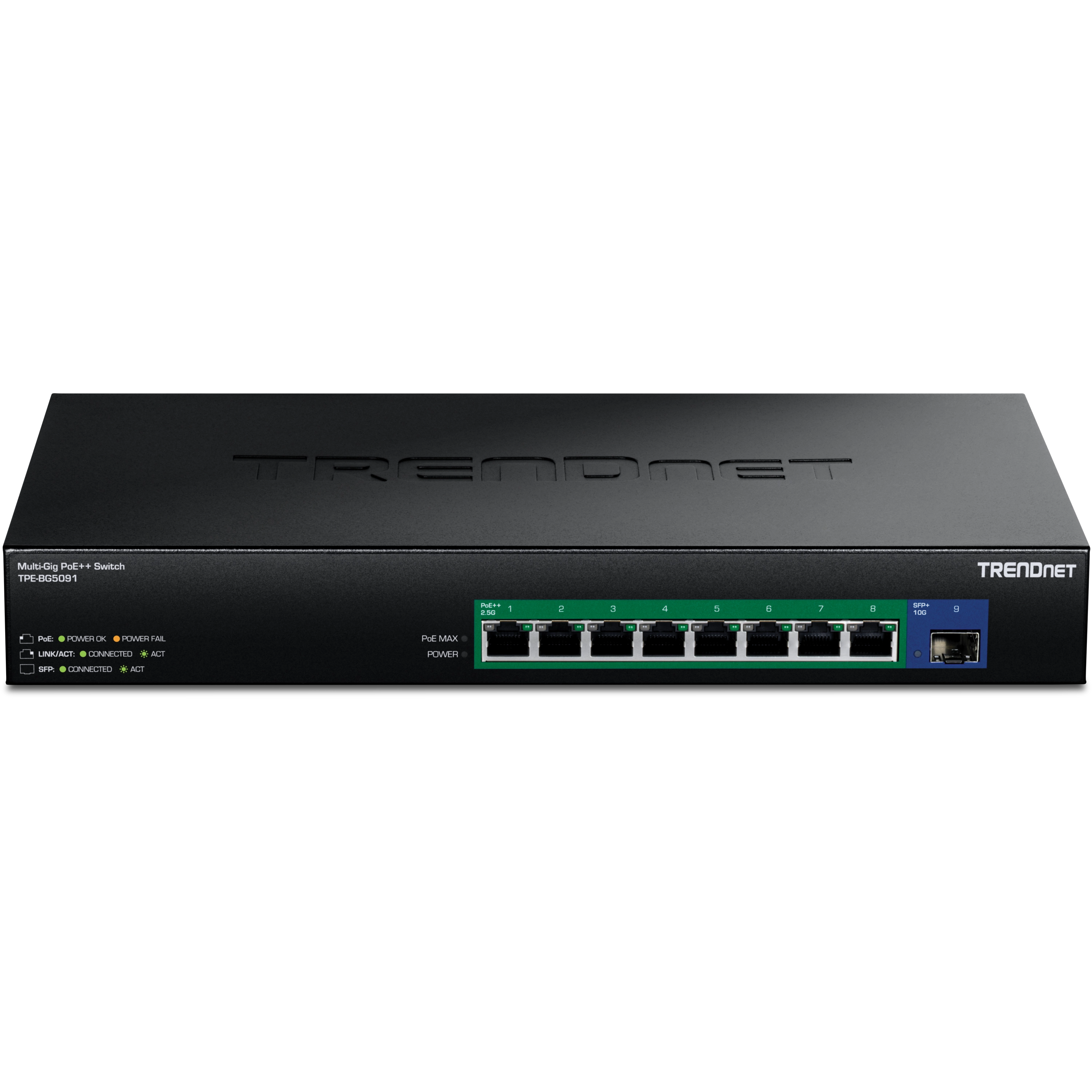

Trendnet - TPE-BG5091 - 9-port 2.5G GaN Power PoE++ Switch with 10G SFP+ Ports (480W)
- • 8 x 2.5G PoE++ ports
- • 1 x 10G SFP+ ports
- • 480W PoE power budget
- • High- efficiency GaN internal power supply
- • Backwards compatible with 10/100/1000Mbps devices
- • Compatible with existing Cat5e or better cabling
- • Rack mountable for installation flexibility
- • 60Gbps switching capacity
- • IEEE 802.3bz (2.5G) compliant
- • Supports IEEE 802.3af/at/bt
- • NDAA / TAA compliant (U.S. and Canada only)
- • Lifetime Warranty
| Standards | • IEEE 802.1p • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.3ae • IEEE 802.3af • IEEE 802.3at • IEEE 802.3bt • IEEE 802.3bz |
| Device Interface | • 8 x 2.5GBASE-T PoE++ ports • 1 x 10G SFP+ ports • LED indicators |
| Data Transfer Rate | • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) • Gigabit: 2Gbps (full duplex) • 2.5 Gigabit: 5Gbps (full duplex) • Gigabit SFP: 2Gbps (full duplex) • 10G SFP+: 20Gbps (full duplex) |
| Performance | • Data RAM Buffer: 1MB • Switch Capacity: 60Gbps • MAC Address Table: 4K entries • Forwarding rate: 44.64Mpps (64-byte packet size) • Jumbo Frame: 12KB |

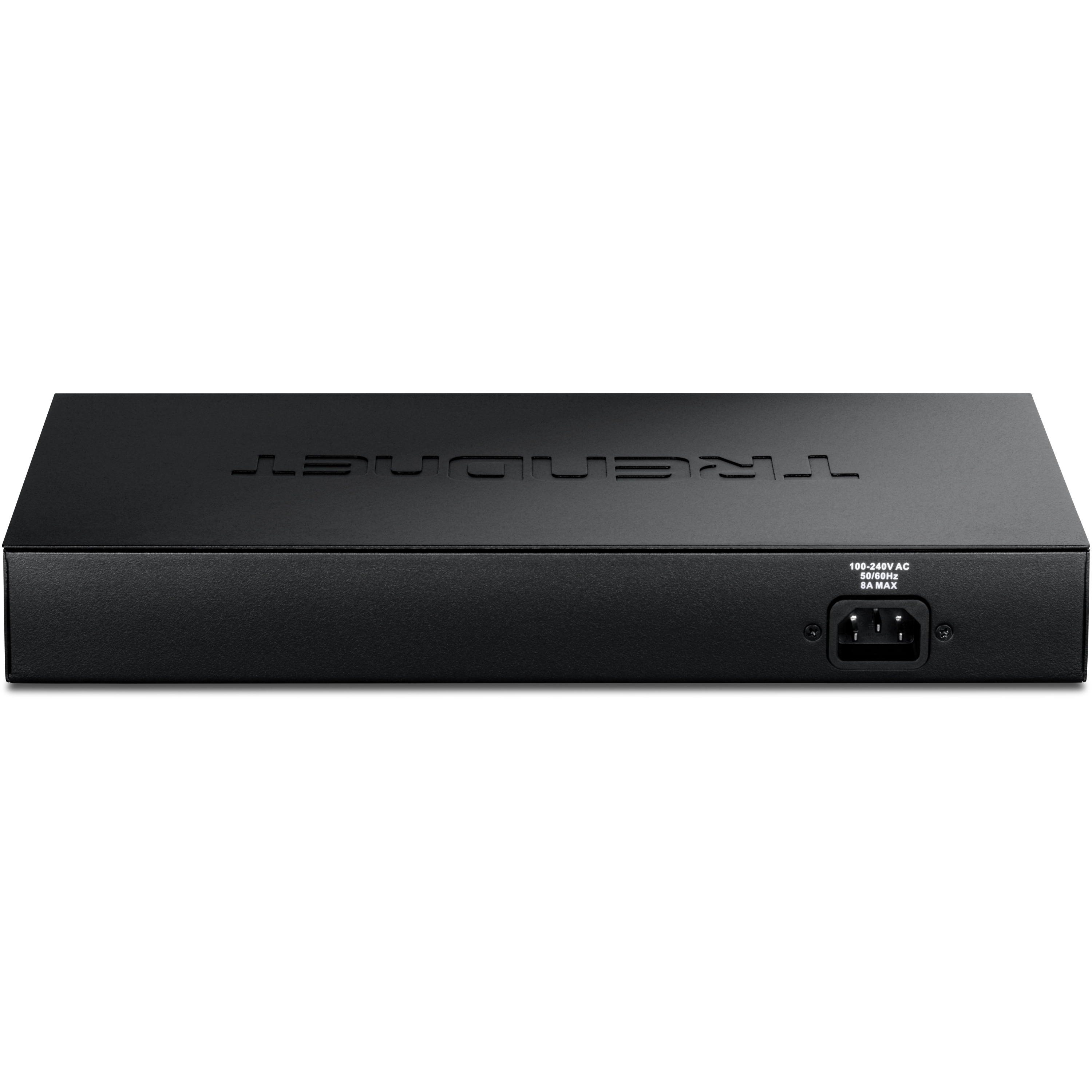

| Power | • Input: 100 – 240V AC, 50/60Hz, internal power supply • Max. consumption: 16.5W (no PD) |
| PoE | • PoE budget: 480W • PoE++: Up to 95W per port • Pins 1, 2, 7, 8 for power - and pins 3, 6, 4, 5 for power + • Over current protection • Short circuit protection |
| Fan/Acoustics | 2 x Smart Fan |
| MTBF | 204,000 hours |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 90% non-condensing |
| Dimensions | 330 x 220 x 44mm (13 x 7.87 x 1.73 in.) |
| Weight | 2.44g (5.29 lbs.) |
| Certifications | • CE • FCC • UL |
| Warranty | Lifetime Warranty |
| Package Contents | • TPE-BG5091 • Rackmount kit • Power cord (1.5m / 4.9 ft.) |
This 2.5G PoE++ switch has 2.5GBASE-T RJ-45 ports which provide multi-gigabit speeds of up to 2.5 Gbps over your existing Cat5e or better cabling. The 10G SFP+ port provides high-speed 10 Gbps network uplinks or downlinks over long distances. This durable, metal-enclosed multi-gigabit PoE++ switch can be rack mounted for flexible setup.
TRENDnet’s reliable 2.5G PoE++ switch is a cost-effective solution for increasing your network’s throughput. With a total PoE power budget of 480W, this multi-gigabit PoE++ GaN-powered network switch can supply up to 95W per port. This high-power 2.5 gigabit PoE++ switch makes it easy to network PoE devices such as high-power wireless access points, IP cameras, digital signage, IPTV decoders, access controls and more.
