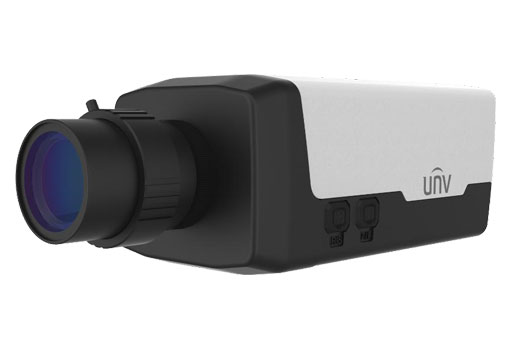

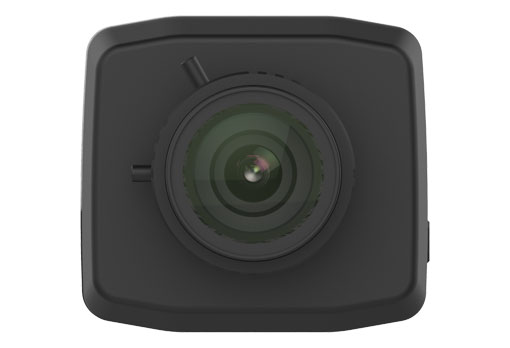

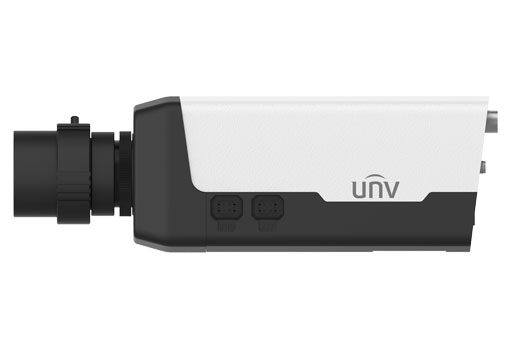

Uniview - IPC562E-DUG - UNV 2MP H.265 WDR Ultra Low-light Network Box Camera (SFP Slot and RJ45)
Part number:
IPC562E-DUG
Price:
UNV 2MP H.265 WDR Ultra Low-light Network Box Camera (SFP Slot and RJ45)
Features:
Optics
- HD starlight surveillance
- Auto day/night functionality
- Up to 120dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor format
Network
- Optional network interfaces with Ethernet RJ45 and optical SFP
- ONVIF Conformance
Structure
- AC 24V/DC 12V/PoE with uninterruptible power supply
- Wide temperature range: -20°C ~ 60°C (-4°F ~ 140°F)
- Wide voltage range of ±25%
- 6KV surge protection designed for network interface
| Camera | IPC562E-DUG |
| Sensor | 1/1.8", 2.0 megapixel, progressive scan ,CMOS |
| Lens Mount | CS |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.0005Lux (F1.2, AGC ON) B/W: 0.0001Lux (F1.2, AGC ON) |
| Day & Night | Automatically removable IR-cut filter(ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| · Defog | Optical Defog & Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps |
| 9:16 Corridor Mode | Supported |
| HLC | Supported |
| BLC | Supported |
| ABF | Supported |
| OSD | Up to 8 OSDs |
| ROI | Up to 8 areas |
| Privacy Mask | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way Talking | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Interface | |
| Audio I/O | 3.5mm audio interface |
| Input: impedance 35kΩ; amplitude 2V [p-p] | |
| Output: impedance 600Ω; amplitude 2V [p-p] | |
| Alarm I/O | 2/1 |
| Zoom/focus | N/A |
| Iris | P-Iris/DC- Iris |
| Serial Port | 1 RS485 (support Pelco-D/P) |
| Network | 1 RJ45 100M/1000M Base-FX SFP+100M/1000M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] |
| General | |
| Power | AC 24V±25%, DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 6.8W | |
| Dimensions (L x W x H) | 151.5 x 71 x 65mm (6.0“ x 2.8“ x 2.6”) (excluding the lens) |
| Weight | 0.48kg (1.1lb) |
| Working Environment | -20°C ~ 60°C (-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Reset Button | Supported |
Name
Description
Size
Downloads
File
Data Sheet
0.6mb
File
Manual
6.9mb
File
Quick Guide
1.4mb
File
Installation guide
6.4mb
