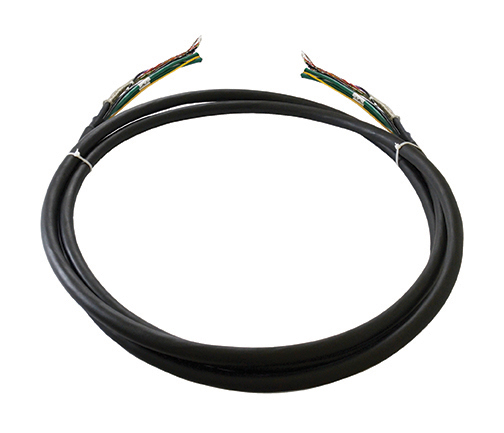

VideoTec - CMAN1300 - Armoured black cable, available by the meter (minimum order 10m): 1 Ethernet cable, 3 power supply wires, 1 coaxial video cable, 8 wires for alarms, relays and telemetry
Part number:
CMAN1300
Price:
Armoured and unarmoured multipolar cables for Pan & Tilt and housings. They are suitable for use in hostile environments.
FEATURES:
- Prepared for Ethernet, video, I/O and telemetry connections
- Resistant to oil, flame spread and ultra-violet rays
- Available in an armoured and unarmoured version
- Designed for potentially explosive zones
| GENERAL: |
| Armoured black cable: 1 Ethernet cable, 3 power supply conductors, 1 coaxial video cable, 8 shielded I/O cables |
| MECHANICAL: |
| Armoured cable |
| External diameter: 20.5mm (0.8in) ± 0.5mm (0.02in) |
| Diameter under armature: 16mm (0.63in) |
| Minimum bending radius: 184.5mm (72.6in) |
| Colour: Black (RAL9005) |
| Type of laying: fixed installation |
| ELECTRICAL: |
| Power Supply |
| • Number of conductors: 3 |
| • Section: 2.5mm² (13AWG) |
| • Working voltage: 300V max |
| NETWORK |
| Ethernet cable |
| • Number of cables: 1 |
| • Section: 4x2x0.22mm² (24AWG) |
| • Category: 5e |
| • Shielding: SF/UTP |
| VIDEO |
| 1 coaxial cable, RG179 |
| I/O |
| Alarms, relay and telemetry |
| • Number of conductors: 8 |
| • Section: 0.34mm² (22AWG) |
| • Shielded cable |
| ENVIRONMENT: |
| Temperature: from -60°C (-76°F) up to +105°C (+221°F) |
| CERTIFICATIONS: |
| Oil resistant: complies with CNOMO E.03.40.150N, ASTM n.2, IRM 902, VDE 0472 p.803 test B |
| UV resistant: complies with IEC60068-2-5 |
| Resistance to flame spread: complies with IEC/EN60332-1, IEC/EN60332-3-22 |
| Halogen free: EN50267-2-1 |
| Fixed installation: complies with IEC/EN60079-14 (ATEX Ex II) |
| RoHS (CE): complies with 2015/863/EU |
| PART NUMBER |
| Unarmoured multipolar black cable, available by the metre (minimum order 10m (32.8ft)): 1 Ethernet cable, 3 power supply wires |
