GENERAL

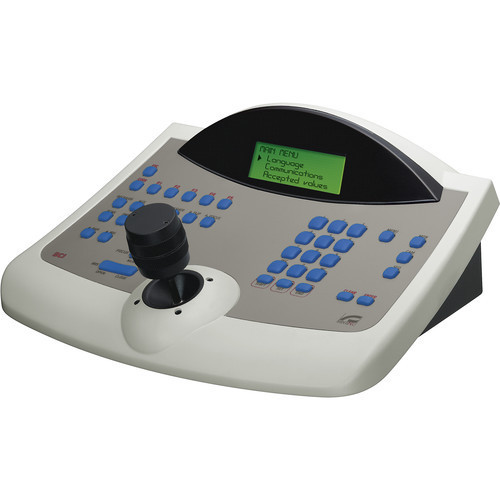

• Joystick for Pan/Tilt/Zoom and menus control
• Display back-lit
• Ergonomic keys configuration
• Menu in 4 languages (Italian, English, French, German)
• Three password levels: Connection, set-up, alarm reset
• Macro-functions keys (max. 10): Monitor selection, camera selection, selection of receiver associated to the camera, previously stored P&T scan position
• 9999 cameras, 999 telemetry receivers, 99 monitors
• Alarm and/or breaks communication buzzer
• Various accessory functions like keys enabling/disabling, energy saving, error alert, etc.
• Equipped with wide range power supply, 3 power cables, 6 RJ11 telephone cables, 6 RJ11 jack junction boxes
•

MECHANICAL

• Thermo-resistant and shock proof ABS material
• Dimensions: 298x107x210mm (11.7x4.2x8.2in)
• 3 axis proportional joystick, with calibration and test features
• Display 4 lines of 20 characters
• 3 connectors RJ11
• Power supply jack connector
• DB9 connector for firmware update
• Configuration dip-switch
• Unit weight: 1.1kg (2.2lb)
•

ELECTRICAL

• Power supply:
• IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A

SERIAL COMMUNICATIONS

• 3 RS485 lines for communication
• 1 direct line with matrix and multiplexer to a max. 1200m (3937ft)
• 2 lines for 2 independent telemetry daisy chains, up 999 telemetry receivers to a max. 1200m (3937ft)
• Serial connection RS232 to PC for firmware update, controllable to a maximum distance 15m (49ft)

• Protocols (Video Line):
• VIDEOTEC (1200, 9600, 19200, 38400 baud)
• VIDEOTEC MACRO (1200, 9600, 19200, 38400 baud)
• Protocols (Telemetry Line):
• PELCO D (2400, 4800, 9600, 19200 baud)
• VIDEOTEC (1200, 9600 baud)
• VIDEOTEC MACRO (1200, 9600, 19200, 38400 baud)

ENVIRONMENT

• For installation indoors
• Operating temperature: from 0°C (32°F) up to +40°C (104°F)

CERTIFICATIONS

• Electrical safety (CE): EN60950-1, EN62368-1
• Electromagnetic compatibility (CE): EN50130-4, EN55022 (Class B), EN61000-6-3, FCC Part 15 (Class B)
• EAC certification

RELATED PRODUCTS

• SM82A Video matrix 8 inputs and 2 outputs
• SM164B Video matrix 16 inputs and 4 outputs
• SM328B Matrix 32 inputs and 8 outputs
• DTMRX224 Telemetry receiver 12 functions, 24Vac
• DTMRX2 Telemetry receiver 12 functions, 230Vac
• DTRX324 Telemetry receiver 17 functions, 24Vac
• DTRX3 Telemetry receiver 17 functions, 230Vac
• DTCOAX Over the coax board (only thru SM series matrix)
• ULISSE Integrated positioning unit
