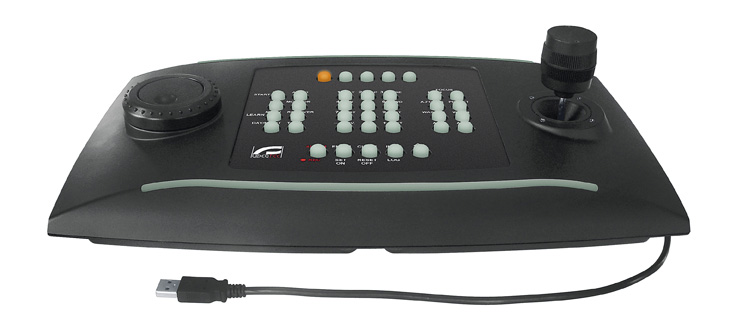

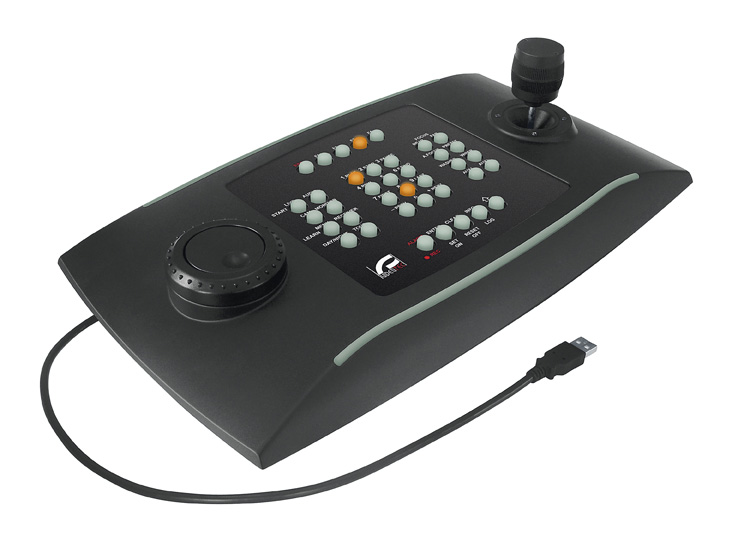

The DCZ keyboard comes with jog shuttle, joystick 38 backlit keys, alarm buzzer, and allows the management of CCTV applications from a PC, via USB connection. It can be easily integrated with control systems using basic programming techniques without an SDK.
The keys are recognized in any combination configured by the programmer: the application receives an event message whenever a key is pressed or released.
Features:
- USB keyboard for managing CCTV applications, with joystick and jog shuttle
- Functions determined by the controlled application
- Customizable features
- The user can easily personalize and print several pre-cut sheets supplied for this purpose
- HID Game Controller emulation for the use with the most important VMS (Avigilon Control Center, Ganz-VsoIP, Exacq Vision, Milestone XProtect®, Genetec Omnicast 4.2, Mirasys-DVMS, Seetec ProBox, Sony-Real Shot Manager, Luxriot DVR)*
GENERAL
- Backlit rubber keys
- Alarm buzzer
- Operating system:
- Windows® compatible
- Linux® compatible
MECHANICAL
- Dimensions: 379x89x224mm (15x3.5x8.8in)
- Unit weight: 1.4kg (3lb)
ELECTRICAL
- USB powered
- Consumption: 350mA max
SERIAL COMMUNICATIONS
- USB 2.0
- Dedicated Virtual Com Port protocol
- Joystick HID 4-axis 40 keys emulation
ENVIRONMENT
- For installation indoors
- Operating temperature: from 0°C (32°F) up to +45°C (+113°F)
CERTIFICATIONS
- Electrical safety (CE): EN60950-1
- Electromagnetic compatibility (CE): EN50130-4, EN55022 (Class B),EN61000-6-3, FCC Part 15 (Class B)
- UL certification: cULus Listed
- EAC certification
- KC certification
ACCESSORIES
- ODCZKIT38 Pre-cut sheets for printing customized masks and protective transparent plastic layer
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Manual
0.2mb
