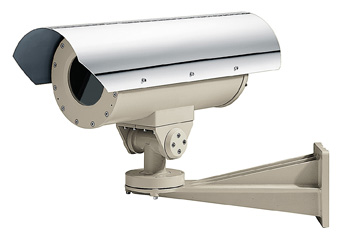

GENERAL

• Non-corrosive die-cast aluminium (anticorodal)
• Epoxy powder painted with orange peel effect, RAL7032

MECHANICAL

• 2 inputs 3/4” NPT for cable glands
• External dimensions: 210x427.5mm (8.3x16.8in)
• Internal dimensions: 180x380mm (7.1x15in)
• Internal usable area: 100x100x280mm (3.9x3.9x11in)
• Unit weight: 15kg (33.5lb)

HOUSING'S WINDOW

• Germanium window
• Usable diameter: 114mm (4.5in)
• Thick:12mm (0.47in)
• External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection
• Internal treatment: antireflection
• Spectral range: from 7.5μm up to 14μm
• Medium transmittance (from 7.5μm up to 11.5μm): 86.6%
• Medium transmittance (from 11.5μm up to 14μm): 67.8%

ELECTRICAL

• Power supply IN 24Vac, 50/60Hz
• Heater Ton 10°C±4°C (50°F±7°F) Toff 25°C±3°C (77°F±5°F)
• IN 24Vac, power consumption 20W max
• Devices to install inside the housing:
• Camera equipped with lens with max total power of 20W
• Voltage 24Vac max
• Useful volume for camera / lens: 2800cm ³
• Minimum distance between the walls of the housing and the camera/lens: 12mm

ENVIRONMENT

• For indoors and outdoors installation
• Operating temperature with heating: from -20°C (-4°F) up to+50°C (122°F)

• Relative humidity: from 5% up to 95%

CERTIFICATIONS

• Electrical safety (CE): EN62368-1

• Electromagnetic compatibility (CE): EN601000-6-3, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class B)

• RoHS (CE): EN50581

• Outdoor installation (CE): EN60950-22, ICE60950-22

• IP protection degree (EN/IEC60529): IP66

CERTIFICATIONS - EXPLOSION-PROOF APPLICATIONS

• ATEX (EN 60079-0+A11, EN 60079-1, EN 60079-31)

• EAC EX (TR CU 012/2011)

ACCESSORIES

• EXHS000 Sunshield 580mm (22.8in) for EXH series
• OCTEX3/4C Cable gland in nickel-plated brass with gasket EX 3/4" NPT, unarmoured cable IECEX-ATEX-EAC Ex
• OCTEXA3/4C Cable gland in nickel-plated brass with gasket EX 3/4" NPT, armoured cable IECEX-ATEX-EAC Ex
• OCTEXB3/4C Barrier cable gland in nickel-plated brass 3/4" NPT, unarmoured cable IECEX-ATEX-EAC Ex
• OCTEXB3/4P Barrier cable gland in nickel-plated brass EX 3/4" NPT, unarmoured cable IECEX-ATEX-EAC Ex
• OCTEXBA3/4P Barrier cable gland in nickel-plated brass EX 3/4" NPT, armoured cable IECEX-ATEX-EAC Ex
• OCTEXBA3/4C Barrier cable gland in nickel-plated brass 3/4" NPT, armoured cable IECEX-ATEX-EAC Ex
• OCTEX3/4 Cable gland in nickel-plated brass with gasket EX 3/4" NPT, unarmoured cable ATEX
• OCTEXA3/4 Cable gland in nickel-plated brass with gasket EX 3/4" NPT, armoured cable ATEX
• OCTEXB1/2C Barrier cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
• OCTEXB1/2P Barrier cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
• OCTEXBA1/2P Barrier cable gland in nickel-plated brass EX 1/2" NPT, armoured cable IECEX-ATEX-EAC Ex
• OCTEX1/2C Cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
• OCTEXS1/2C Cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
• OCTEXA1/2C Cable gland in nickel-plated brass EX 1/2" NPT armoured cable IECEX-ATEX-EAC Ex
• OCTEX1/2-3/4P Cable glands reduction in nickel-plated brass Ex 3/4" - 1/2" NPT IECEX-ATEX-EAC Ex
• OCTEXP3/4C Conduit cable gland nickel-plated brass 3/4" NPT IECEX-ATEX- c CSA us - EAC Ex ( operating temperature : from -60°C (-76°F) up to +80°C (+176°F) )
• OEXPLUG1/2P Plug EX 1/2“ NPT IECEX-ATEX-EAC Ex
• OEXPLUG3/4P Plug EX 3/4" NPT IECEX-ATEX-EAC Ex

For further details about cable glands part numbers, please refer to the relevant table.

BRACKETS AND ADAPTORS

• EXWBJ000 Bracket and ball joint RAL7032 for EXH series
• EXBJ000 Only ball joint for EXH RAL7032 housings

SPARE PARTS

• OSLIEX Internal slide complete with heater for EXHC and EXPTC series
