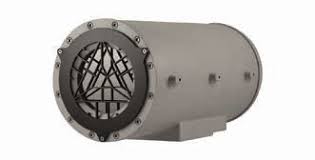

VideoTec - EXHC003G - Explosion- proof housing for thermal cameras RAL9002, triple heater 24Vac
Part number:
EXHC003G
Price:
The EXH housings are made with strong Anticorodal aluminium die-cast alloy of AISi Mg EN AB- 42100 group. All external components are stove enameled using powder offering an excellent resistance to UV rays, salt-spray, environment polluting substances. The germanium window is designed for thermal imaging camera installations. The germanium composition, with its remarkable properties, allows IR transmission with the best optical quality.
Features:
- Certifications Ex d for use in Zone 1 and 2, Group IIC (Gas), and in Zone Ex tb 21 and 22 (Dust)
- Solid anticorodal aluminium construction
- IP66
- 2 holes for cable glands 3/4" NPT
- Supplied with heater. Sunshield as option.
- Ambient temperature: from -40°C (-40°F) up to +50°C (122°F)
| MECHANICAL |
| Non-corrosive die-cast aluminium (anticorodal) |
| Epoxy powder painted, RAL9002 |
| Cable entry: 2 holes, 3/4" NPT |
| Unit weight: 15kg (33.5lb) |
| HOUSING'S WINDOW |
| Germanium window |
| • Thick: 11mm (0.43in) |
| • External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection |
| • Internal treatment: antireflection |
| • Spectral range: from 7.5μm up to 14μm |
| • Medium transmittance (from 7.5μm up to 11.5μm): 87.5% |
| • Medium transmittance (from 11.5μm up to 14μm): 72.1% |
| ELECTRICAL |
| Supply voltage/Current consumption (Ton 15°C±4°C (59°F±7°F), Toff 22°C±3°C (72°F±5°F)): 24Vac, 2.5A, 50/60Hz |
| Power consumption: 80W max |
| CAMERAS |
| Characteristics of installable devices (cameras and lenses): |
| • Power consumption (assembly, camera and lens): 20W max |
| • Usable volume for camera/lens: 2800cm³ |
| • Minimum distance between the walls of the housing and the camera/lens: 12mm |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature with heating: from-40°C (-40°F) up to +50°C (122°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN62368-1 |
| Electromagnetic compatibility (CE): EN61000-6-3, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class B) |
| RoHS (CE): EN IEC 63000 |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| IP protection degree (EN/IEC60529): IP66 |
| CERTIFICATIONS - EXPLOSION-PROOF APPLICATIONS |
| ATEX (EN IEC 60079-0, EN 60079-1, EN 60079-31) |
| IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31) |
| EAC Ex (TR CU 012/2011) (pending) |
| UK EX (EN IEC 60079-0: 2018, EN 60079-1: 2014, EN 60079-31: 2014) |
| BRACKETS AND ADAPTORS |
| WBLA Bracket and ball joint in solid anticorodal aluminium construction, RAL9002 |
| SPARE PARTS |
| OSLIEX Internal slide complete with heater for EXH series |
| PACKAGE |
| EXHC003R 17.5kg (39lb) 61x32x31cm (24x12.6x12.2in) |
