VideoTec - EXHC003R - EXHC003R Explosion-proof Housing
Part number:
EXHC003R
Price:
The EXH housings are made with strong Anticorodal aluminium die-cast alloy of AISi Mg EN AB- 42000 group. All external components are stove enameled using powder offering an excellent resistance to UV rays, salt-spray, environment polluting substances.

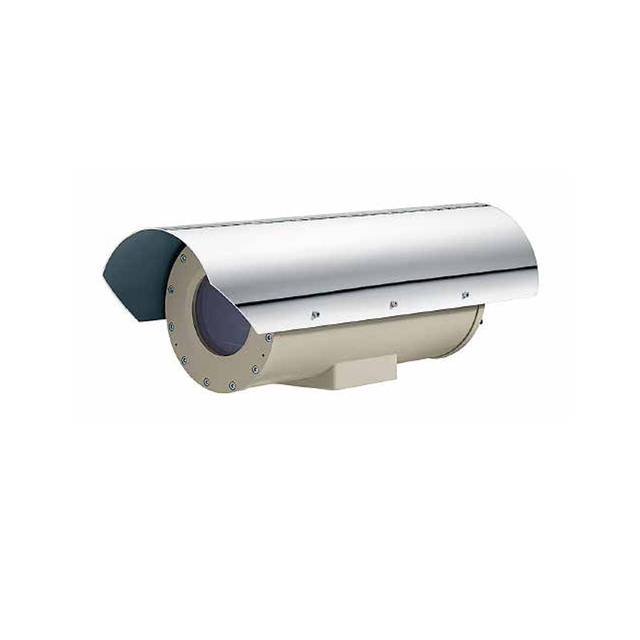

The cylindrical body of the EXHC housing (210mm diameter and 400mm length) is closed on opposite sides by two 12 mm thick flanges. The housing is supplied with two holes for the 3/4" NPT cable glands. The camera housing is equipped with heater and optional sunshield.
Features:
- Certifications Ex d for use in Zone 1 and 2, Group IIC (Gas), and in Zone Ex tb 21 and 22 (Dust)
- Solid anticorodal aluminium construction
- IP66
- 2 holes for cable glands 3/4" NPT
- Supplied with heater. Sunshield as option.
- Ambient temperature: -40°C/+50°C (-40°C/+122°F) with reinforced heater
| GENERAL |
| Non-corrosive die-cast aluminium (anticorodal) |
| Epoxy powder painted with orange peel effect, RAL7032 |
| MECHANICAL |
| 2 holes for cable glands 3/4" NPT |
| External dimensions: |
| EXHC Ø 210mmx427.5mm (8.2x16.8in) |
| Internal dimensions: |
| EXHC Ø 180x380mm (7x14.9in) |
| Internal usable area: |
| EXHC 100x100x280mm (3.9x3.9x11in) |
| Glass window extra clear: |
| EXHC Ø 114mm (4.5in) |
| Unit weight: |
| EXHC 15kg / 33lb |
| ELECTRICAL |
| Reinforced heater: Ton 15°C±4°C (59°F±7°F), Toff 22°C±3°C (72°F±5°F) |
| 3 resistors in the housing, consumption 60W max |
| Glass protection device: |
| 24Vac, power consumption 2W max |
| Devices to install inside the housing |
| Camera equipped with lens with max total power of 20W |
| Voltage max. 24Vac or 230Vac |
| Useful volume for camera / lens: 2800cm ³ |
| Minimum distance between the walls of the housing and the camera/lens: 12mm |
| ENVIRONMENT |
| For installation indoors and outdoors |
| Operating temperature with heating: -40°C / +50°C (-40°F/+122°F) Always refer to the temperature in the marking. |
| CERTIFICATIONS |
| Electrical safety (CE): EN62368-1 |
| Electromagnetic compatibility (CE): EN601000-6-3, EN61000-3-2, EN61000-3-3, |
| EN50130-4, EN55032 (Class B) |
| RoHS (CE): EN50581 |
| Outdoor installation (CE): EN60950-22, ICE60950-22 |
| IP protection degree (EN/IEC60529): IP66 |
| CERTIFICATIONS - EXPLOSION-PROOF APPLICATIONS |
| ATEX (EN 60079-0+A11, EN 60079-1, EN 60079-31) |
| IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31) |
| EAC EX (TR CU 012/2011) |
| KCs (Employment and labor department 2016-54) |
| BRACKETS AND ADAPTORS |
| Bracket and ball joint RAL7032 for EXH series |
| Only ball joint for EXH RAL7032 housings |
