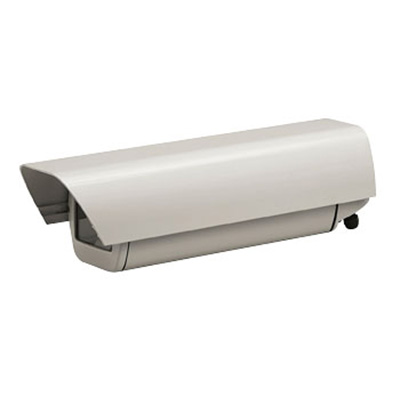

GENERAL

• Aluminium back and front cover plates
• Extruded aluminium body, external slide and sunshield
• Epoxypolyester powder painting, RAL9002 colour
• Stainless steel external screws

MECHANICAL

• Cable glands: 3xM16
• Glass window extra clear
• Dimensions (WxH): 90x81mm (3.5x3.2in)
• Internal usable area (WxH): 90x85mm (3.5x3.3in)
• Internal usable length (without accessories): 320mm (12.6in)
• Internal usable length (with accessories): 250mm (9.8in)
• Unit weight: 3.2kg (7.1lb)

ELECTRICAL

• Heater (Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F))
• Power supply/Consumption: IN 12Vdc/24Vac, 20W max
• Power supply/Consumption: IN 120/230Vac, 40W max
• Blower with thermostat and air filter, Ton 35°C±3°C (95°F±5°F) Toff 20°C±3°C (71°F±5°F) and back cover
• IN 12Vdc, consumption 4W max
• IN 24Vac, consumption 4W max
• IN 230Vac, consumption 4W max, complete with voltage transformer
• Camera power supply
• IN 100-240Vac, 50/60Hz - OUT 12Vdc, 1.25A
• IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA

ENVIRONMENT

• For indoors and outdoors installation
• Operating temperature with heater: from -20°C (-4°F) up to +60°C (140°F)
• Salty fog resistance, to 1000 hours (ISO9227)

• Relative humidity: from 5% up to 95%

CERTIFICATIONS

• CE EN61000-6-3, EN60065, EN50130-4
• IP66/IP67 EN60529 with cable glands
• IP66/IP67 EN60529 with special gaskets and bracket with internal cable channel
• IP55 EN60529 with bracket with internal cable channel

ACCESSORIES

• OHEH01B Heater 12Vdc/24Vac for HEB, HEK housings
• OHEH02B Heater 120/230Vac for HEB, HEK housings
• OHEBVF1 Blower with thermostat and air filter IN 12Vdc, for HEB housing, not compatible with WBOVA2 and WBOV3A2 brackets
• OHEBVF2 Blower with thermostat and air filter IN 24Vac, for HEB housing, not compatible with WBOVA2 and WBOV3A2 brackets
• OHEBVF3 Blower with thermostat and air filter IN 230Vac, for HEB housing, not compatible with WBOVA2 and WBOV3A2 brackets
• OHEPS01B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for HEB housing
• OHEPS02B Camera power supply IN 230Vac - OUT 24Vac, 10VA, for HEB housing
• OWBIP2 Sealing rings kit (3xM16) IP66 for WBOVA2 and WCM4A2 brackets for PUNTO, HOV, HTV, VERSO, VERSO POLAR, VERSO COMPACT, HEB, HEK housings
• OSUPPIR Support for 1 GEKO IRH illuminator under the housing ( the combination between OSUPPIR and WBOVA2 wall mount is not compatible with the PUNTO housing )
• OHEGBB Weatherproof junction box

RELATED PRODUCTS

• PTH300 Horizontal/vertical Pan & Tilt

BRACKETS AND ADAPTORS

• WBJA Wall mount bracket
• WBMA Wall bracket with ball joint
• WBOVA2 Wall bracket with internal cable channel
• WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3
• WCM3A Ceiling bracket with ball joint
• WCM5A Ceiling bracket with ball joint
• WCM4A2 Ceiling bracket with internal cable channel
• WCMPA Linear extension for WCM4A2 and WCM5A
• WFWCA Column bracket with joint
• DBHWGC Pole adapter Ø 210mm, max 225mm (8.2in, max 8.9in) . To be combined with the reinforcing support plate WCPA .
• WCWA Corner mount adaptor
• WSFPA Pole mount adaptor
• WCPA Reinforcing support plate for poor consistency walls
• NXWTU AISI 316L stainless steel adapter module for oblique surfaces

SPARE PARTS

• OHEBS32A000 Sunshield HEB32
• DOTHE01 Spacers for camera and lens
• OHEBMAN Cable glands, gaskets and screws
• OHBCFA04 Front cover with glass, screws and gaskets
• OHBFP04B Back cover with cable glands, gaskets and screws
