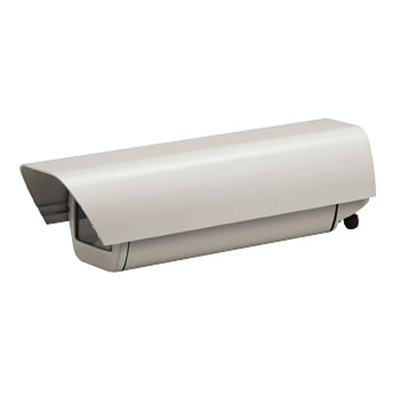

VideoTec - HEB32K2A000B - HEB housing 320mm with sunshield and heater IN 12Vdc/24Vac
Part number:
HEB32K2A000B
Price:
Videotec HEB32K2A000B is a robust and large aluminum housing designed to fit combinations of 1/2", 1/3" and 1/4" cameras and with optics of different kinds.
Features:
- IP66/IP67 (with cable glands or optional sealing rings)
- Slide extractable body with hinged system
- Pre-arranged for internal cable management bracket
- Available accessories: heater, camera power supply, blower and air filter
- Internal usable area (WxHxL): 90x85x250mm (3.5x3.3x9.5in) (HEB32)
- Material aluminum
- Enclosure protection class IP66 / IP67
- Sliding detachable body and attachment system
- Set: filters, sun visor, heater, camcorder power supply
- Useful internal dimensions with heating: 320x90x81 mm
| General |
| Aluminium back and front cover plates |
| Extruded aluminium body, external slide and sunshield |
| Epoxypolyester powder painting, RAL9002 colour |
| Stainless steel external screws |
| Mechanical |
| Cable Glands: 3xM16 |
| Glass window (WxH): 90x81mm (3.5x3.2in) |
| Internal usable area (WxH): 90x85mm (3.5x3.3in) |
| Internal Usable length (with or without accessories): |
| HEK26 260mm (10.2in) |
| HEK30 300mm (11.8in) |
| Internal usable length (with accessories): |
| HEK26 190mm (7.5in) |
| HEK30 250mm (9.8in) |
| Unit weight: 2.7kg-6lb (HEK26), 3.2kg-7.7lb (HEK30) |
| Electrical |
| Heater TON 15°C°3°C (59°C°5°C), Toff 22°C°3°C (77°F°5°C)) |
| Power supply/Consumption: IN 12Vdc/24Vac, 20W max |
| Power supply/Consumption: IN 120/230Vac, 40W max |
| Blower with thermostat and air filter, TON 35°C°3°C (95°C°5°C), Toff 20°C°3°C (71°F°5°C)) |
| In 12Vdc, consumption 4W max |
| In 24Vac, consumption 4W max |
| In 230Vac, consumptoin 4W max, complete with voltage transformer |
| Not compatible with bracket with internal cable channel. |
| Camera Power Supply: |
| IN 100-240Vac, 50/60Hz - OUT 12Vdc, 1A |
| IN 230Vac - Out 24Vac, 50/60Hz, 400mA |
| Environment |
| Indoor/Outdoor |
| Operating Temperature (with heater): From - 20°C (-4°F) to +60°C (140°F) |
| Resistant to salty fog until 1000 hours (according to IS092278) |
| Certifications |
| CE:EN61000-6-3, EN60065, EN50130-4 |
| IP66/IP67 EN60529 with cable glands |
| IP66/IP67 EN60529 with special gaskets and bracket with internal cable channel |
| IP55 EN60529 with bracket with internal cable channel |
