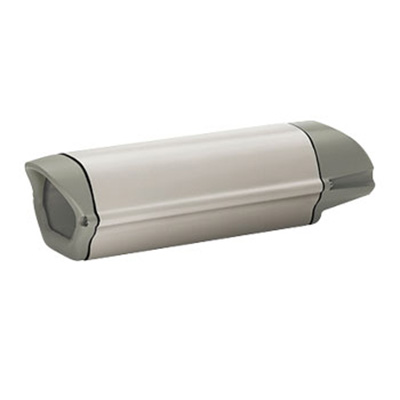

GENERAL

• • Resistant technopolymer front and back cover, RAL7030
  • Extruded aluminium body and external slide
  • Epoxypolyester powder painting, RAL9002 colour
  • Stainless steel external screws
  • Supplied with instruction manual, desiccant bag, accessories for camera and lens mounting

MECHANICAL

• • Cable glands: 3xM16
  • PMMA window (WxH): Ø 72mm (2.8in)
  • Internal usable area (WxH): 82x62mm (3.2x2.4in)
  • Internal usable length (without accessories): 300mm (11.8in)
  • Internal usable length (with heater and/or power supply): 235mm (9.2in)
  • Internal usable length (with heater and/or blower): 235mm (9.2in)
  • Unit weight: 2.2kg (4.8lb)

ELECTRICAL

• Heater (Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F))
  • Power supply/Consumption: IN 12Vdc/24Vac, 20W max
  • Power supply/Consumption: IN 120/230Vac, 40W max
• Blower with thermostat and air filter, Ton 35°C±3°C (95°F±5°F) Toff 20°C±3°C (71°F±5°F) and back cover
  • IN 12Vdc, consumption 4W max
  • IN 24Vac, consumption 4W max
• Camera power supply
  • IN 100-240Vac, 50/60Hz - OUT 12Vdc, 1.25A
  • IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA

  ENVIRONMENT

• For indoors and outdoors installation
• Operating temperature with heating: from -20°C (-4°F) up to +60°C (140°F)
• Relative humidity: from 5% up to 95%

  CERTIFICATIONS

• Electrical safety (CE): EN60065, EN62368-1
• Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3
• IP protection degree: EN60529
  • IP66/IP67 (with cable glands)
  • IP66/IP67 (with bracket with internal cable channel, with sealing rings)
  • IP55 (with bracket with internal cable channel)
