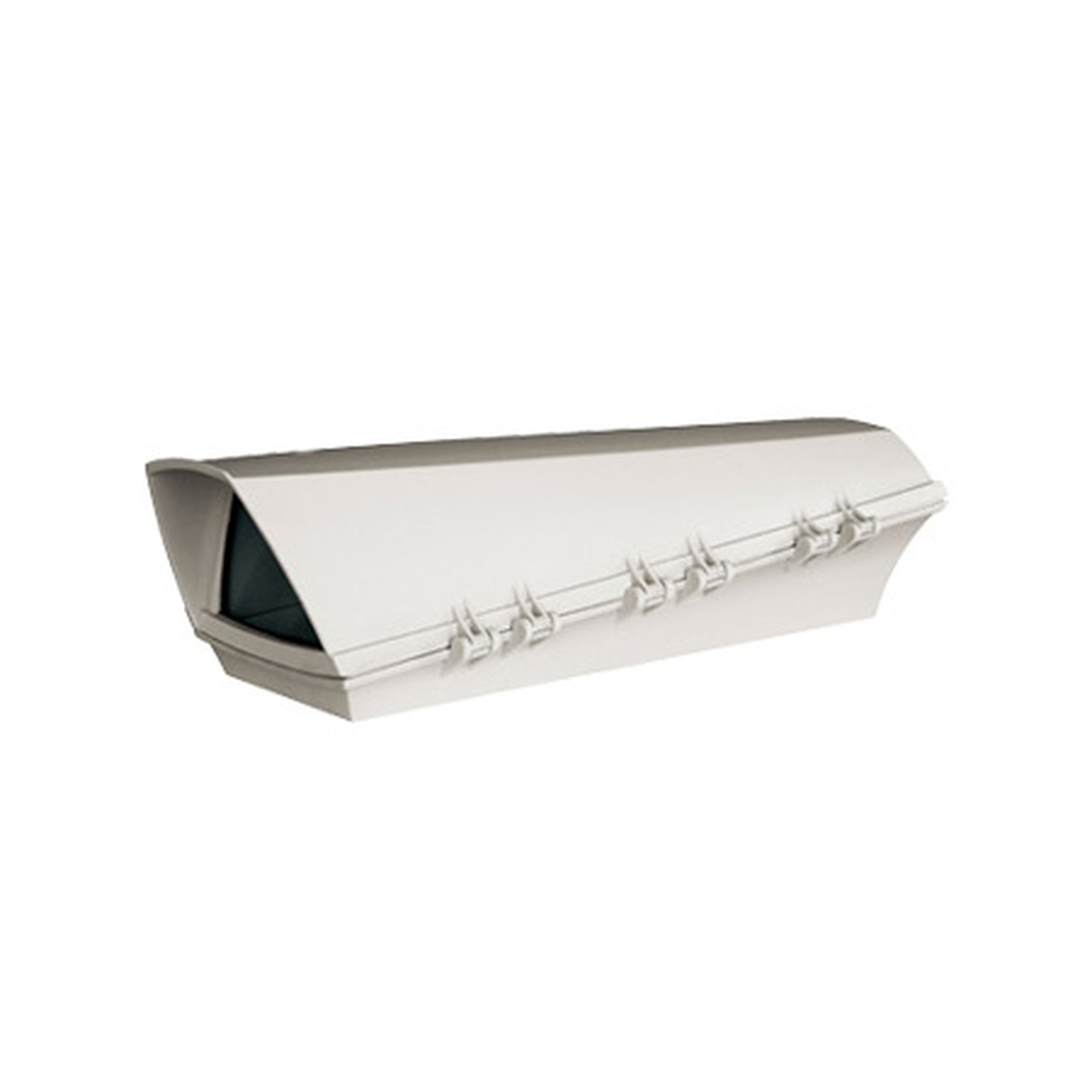

VideoTec - HOT39D1A000 - PUNTO housing with heater IN 120/230Vac
Part number:
HOT39D1A000
Price:
This aerodynamic technopolymer housing has been designed to accommodate a variety of camera and lens combinations.. Very easy to install thanks to the side-opening system that allows the full access to the camera, lenses and all internal connections. Very easy to install thanks to the side-opening system that allows the full access to the camera, lenses and all internal connections. The front is designed to offer protection from sunlight and atmospheric agents. The housing proposes various mounting options, wall or ceiling brackets, feedthrough and non-feedthrough, or Pan & Tilt head. A wide range of accessories for mounting the equipment is available thereby satisfying all installation needs.
Features:
- Aerodynamic design
- Full access to camera, lens and all internal connections
- Pre-arranged for internal cable management bracket
- Integrated heater
| GENERAL |
| Made of strong technopolymer |
| RAL9002 Colour |
| Stainless steel external screws |
| MECHANICAL |
| Internal usable area (WxH): 70x70mm (2.7x2.7in) |
| Internal usable length (with or without accessories): 250mm (9.8in) |
| Unit weight: 0.8kg (1.8lb) |
| Cable glands: 2xM16 |
| Housing window |
| Material: Glass |
| Dimensions (WxH): 60/95x63mm (2.4/3.7x2.5in) |
| ELECTRICAL |
| Supply voltage/Current consumption (empty version): |
| From 12Vdc up to 24Vdc, 1A max |
| From 12Vac up to 24Vac, 1A max, 50/60Hz |
| From 120Vac up to 230Vac, 400mA max, 50/60Hz |
| Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| From 12Vdc up to 24Vdc, 3A max |
| From 12Vac up to 24Vac, 3A max, 50/60Hz |
| From 120Vac up to 230Vac, 400mA max, 50/60Hz |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature with heating: from -20°C (-4°F) up to +60°C (140°F) |
| Chemical agents resistance |
| High resistance: basics, alcohols, gas, hydrocarbon |
| Good resistance: Organic acids, inorganic acids, oils |
| Low resistance: Solvents |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3, EN55022 Classe B |
| Outdoor installation (CE): EN60950-22, IEC 60950-22 |
| IP protection degree (EN60529): IP66 |
| UL certification: cULus Listed, TYPE 4X (only versions from 12Vdc up to 24Vdc and from 12Vac up to 24Vac) |
| EAC certification |
| ACCESSORIES |
| OHOTS Sunshield |
| OHOTPS1 Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for PUNTO housing |
| OHOTPS2 Camera power suply IN 230Vac - OUT 24Vac, 400mA, for PUNTO housing |
| OWBIP2 Sealing rings kit (3xM16) IP66 for WBOVA2 and WCM4A2 brackets for PUNTO, HOV, HTV, VERSO, VERSO POLAR, VERSO COMPACT, HEB, HEK housings |
| OSUPPIR Support for 1 GEKO IRH illuminator under the housing ( the combination between OSUPPIR and WBOVA2 wall mount is not compatible with the PUNTO housing ) |
| BRACKETS AND ADAPTORS |
| WBJA Wall mount bracket |
| WBOVA2 Wall bracket with internal cable channel |
| WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3 |
| WCM3A Ceiling bracket with ball joint |
| WCM5A Ceiling bracket with ball joint |
| WCM4A2 Ceiling bracket with internal cable channel |
| WFWCA Column bracket with joint |
| DBHWGC Pole adapter Ø 210mm, max 225mm (8.2in, max 8.9in) . To be combined with the reinforcing support plate WCPA . |
| WSFPA Pole mount adaptor |
| WCWA Corner mount adaptor |
